Description

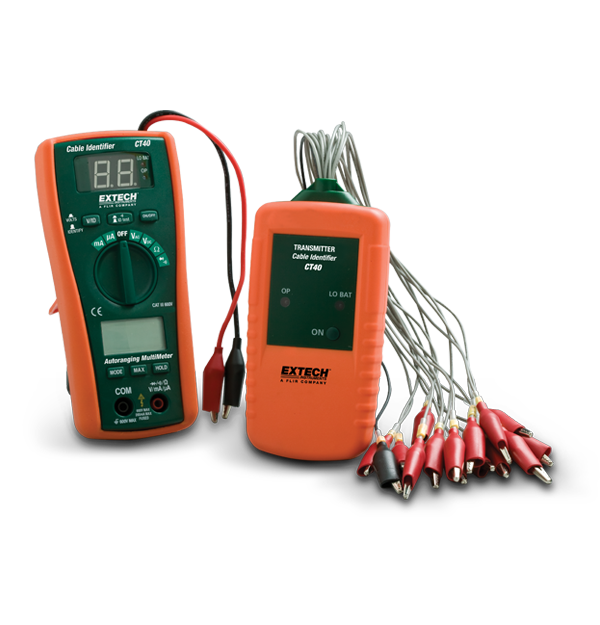

The Extech CT40 is a professional cable identification and troubleshooting kit that enables a single technician to remotely identify and trace up to 16 individual wires or cables without power interruption. It combines a transmitter with 16-channel LED indicators and a receiver/multimeter with a 2-digit blue LED display. Ideal for electricians, telecom installers, and maintenance teams working on complex wiring systems in panels, conduits, or building infrastructure.
Features
- Identify and trace up to 16 unpowered or live cables remotely
- Transmitter features 16 red LED indicators (one per line) + ground reference
- Receiver doubles as a full-featured digital multimeter (DMM)
- Measures AC/DC voltage (up to 600V), current (up to 200mA), and resistance (up to 20MΩ)
- Diode test and continuity beeper with audible tone
- Wire voltage check: 5–16VDC for line verification
- Data Hold and Max Hold functions
- Auto power-off and low battery indicators on both units
- CAT III 600V safety rated for industrial use
- Includes transmitter, receiver/multimeter, test leads, alligator clips, batteries, and pouch case
Specifications
|
|
|
|
|---|---|---|
| Multimeter Display | 2000 count | — |
| Basic Accuracy | ±1.0% | — |
| DC Voltage Range | 0.1mV to 600V | V |
| AC Voltage Range | 1mV to 600V | V |
| DC/AC Current | 0.1µA to 200mA | A |
| Resistance Range | 0.1Ω to 20MΩ | Ω |
| Diode/Continuity | Yes (audible beep) | — |
| Transmitter LEDs | 16 red LEDs + ground | — |
| Receiver Display | 2-digit blue LED | — |
| Max Cable Resistance | 30kΩ | — |
| Safety Rating | CAT III 600V | — |
| Dimensions (Meter) | 6.3 x 2.9 x 1.7 | in (162x74.5x44mm) |
| Weight | 10.8 | oz (308g) |
