Description

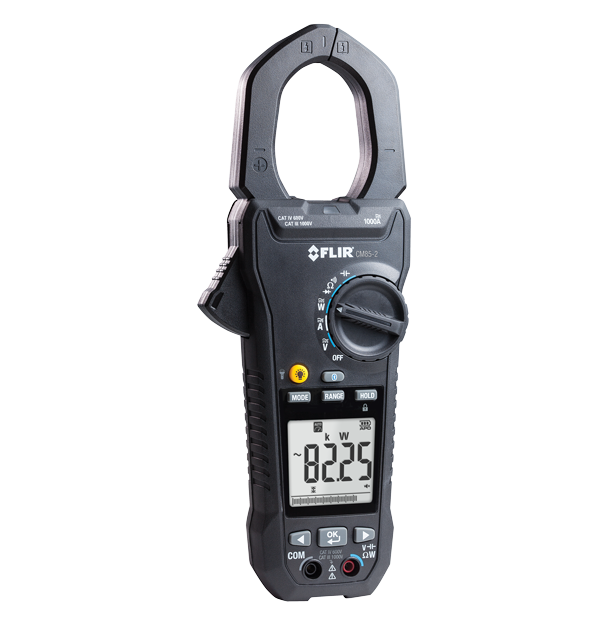

The FLIR CM85-2 is a professional True RMS power clamp meter with VFD Mode for accurate measurements on variable frequency drive systems, Inrush Mode for capturing startup current spikes, and Bluetooth® connectivity up to 10 m (32 ft). Ideal for advanced power analysis in industrial and commercial settings, it measures voltage, current, harmonics, phase rotation, power factor, and more. CAT IV-600V / CAT III-1000V rated and backed by a Limited Lifetime Warranty.
Features
• VFD Mode for accurate readings on VFD-controlled equipment
• Inrush current capture during motor startup
• Bluetooth® for wireless data transfer via METERLiNK® app
• Measures harmonics (H01–H25), THD, power factor, and phase rotation
• True RMS AC/DC voltage and current
• 45 mm (1.77") jaw opening
• CAT IV-600V / CAT III-1000V safety rating
• Drop-tested to 1.2 m (4 ft)
• Includes soft case, test leads, and 6 AAA batteries
Specifications
|
|
|
|---|---|
| AC/DC Current | 999.9 A |
| AC/DC Voltage | 999.9 V |
| VFD Current/Voltage | 999.9 A / 999.9 V (50–60 Hz) |
| Inrush Current | 999.9 A, ±3% |
| Harmonics | H01–H25, THD up to 99.9% |
| Power Factor | -1.00 to +1.00, ±3° |
| Jaw Opening | 45 mm (1.77 in) |
| Bluetooth Range | 10 m (32 ft) |
| Safety Rating | CAT IV-600V, CAT III-1000V |
| Battery Life | 50 hours (alkaline, backlight off) |
| Weight | 0.65 kg (1.43 lb) |
