Extech 380976-K 3-Phase True RMS Power Clamp Meter Kit with Temperature & Capacitance
Roll over image to zoom in Click on image to zoom
Extech 380976-K 3-Phase True RMS Power Clamp Meter Kit with Temperature & Capacitance

Extech 380976-K 3-Phase True RMS Power Clamp Meter Kit with Temperature & Capacitance

EXTECHSKU: 380976-K
filler
Price:
1,380.00 SR (Including VAT)
1,200.00 SR (Excluding VAT)
Stock:
Sold out

Description

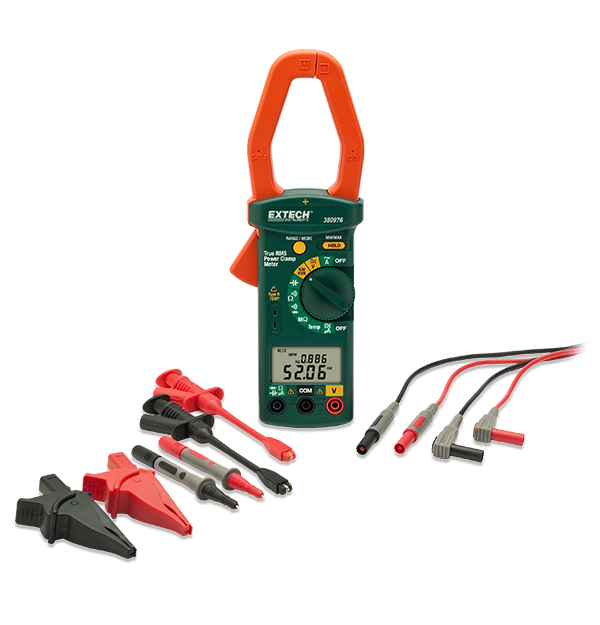

The Extech 380976-K is a professional-grade 3-phase True RMS power clamp meter kit designed for comprehensive electrical system analysis. It measures True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Phase Angle, Power Factor, Horsepower, and includes advanced functions like µA current (10nA resolution for flame rod tests), capacitance (up to 7000µF), resistance (up to 100MΩ), and Type K temperature. Ideal for motor/generator diagnostics, HVAC systems, and industrial power evaluation with CAT III safety rating.
  • Measures 1ϕ & 3ϕ True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), and Horsepower (HP)
  • Displays Power Factor and Phase Angle (±60°) with Lead/Lag indicator
  • AC+DC µA current measurement with 10nA resolution — perfect for HVAC flame rod tests
  • Large dual 9999-count LCD for simultaneous parameter viewing
  • Max/Min recording with elapsed time indication
  • Auto-detect AC/DC voltage with simultaneous frequency display
  • Capacitance measurement up to 7000µF (0.001µF resolution)
  • High resistance testing up to 100MΩ
  • Type K temperature measurement (–50°C to 900°C / –58°F to 1000°F)
  • Diode test and continuity beeper
  • 1.6” (40mm) clamp jaw opening
  • Includes premium test lead kit, Type K thermocouple, carrying case, and 9V battery
  • CAT III 600V safety rated for industrial environments





True Power (kW) 600 10W ±5% kW
Apparent Power (kVA) 600 100VA ±2% kVA
Reactive Power (kVAR) 600 10VAR ±5% kVAR
Horsepower (HP) 800 0.01HP ±5% HP
Phase Angle -60° to +60° 0.1° ±6° degrees
AC Current (True RMS) 1000A 10mA ±2% A
µA Current (AC+DC) 1000µA 10nA ±1% µA
AC/DC Voltage (True RMS) 600V 0.1mV ±1% V
Resistance 1000kΩ / 100MΩ 0.1Ω / 1kΩ ±1% / ±5% Ω / MΩ
Capacitance 7000µF 1nF ±1.5% µF
Frequency 40Hz to 1kHz 0.1Hz ±0.5% Hz
Temperature (Type K) -50 to 900°C / -58 to 1000°F 0.1° ±1% °C / °F
Jaw Opening 1.6 — — in (40mm)
Dimensions 9 x 3 x 1.6 — — in (228x76x39mm)
Weight 16.4 — — oz (465g)

Extech 380976-K Datasheet
