Description

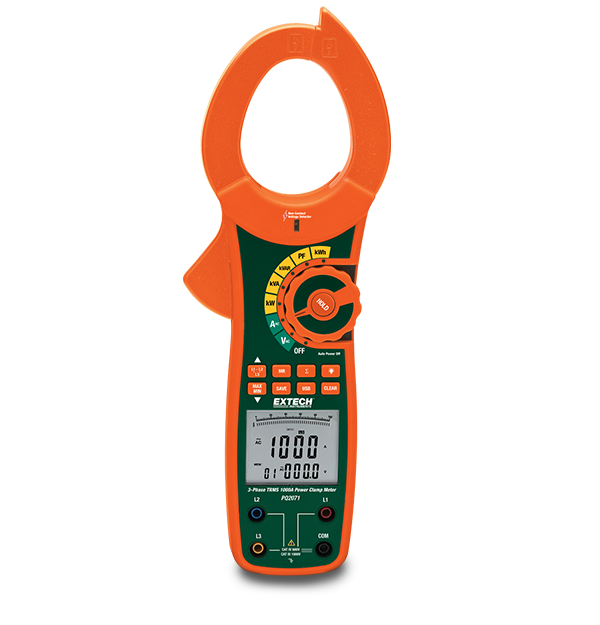

The Extech PQ2071 is a multifunctional power quality clamp meter that combines True RMS current and voltage measurement with advanced power analysis for 1-phase and balanced 3-phase AC systems. It measures True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Active Energy (kWh), Power Factor, and Phase Angle—all with a CAT IV 600V safety rating for use on service entrances and distribution panels. Featuring a large dual backlit 9999-count LCD, built-in non-contact voltage (NCV) detector, and USB datalogging capability with included PC software, the PQ2071 is ideal for energy audits, motor diagnostics, electrical maintenance, and power quality assessments.
Features
- Measures 1-phase and balanced 3-phase AC power parameters: kW, kVA, kVAR, kWh, Power Factor, and Phase Angle
- True RMS AC current up to 1000A and voltage up to 750V
- CAT IV 600V safety rating for high-confidence use on main panels and service drops
- Built-in non-contact voltage (NCV) detector with LED alert
- Large dual backlit LCD with 9999-count display and analog bar graph
- Frequency measurement from 50 Hz to 200 Hz
- Manual data storage for up to 99 readings
- Data Hold, Max/Min, and Auto Power Off
- USB interface with PC software for real-time datalogging and reporting
- Includes test leads, four color-coded leads with alligator clips, USB cable, 9V battery, and soft carrying case
Specifications
|
|
|
|
|
|---|---|---|---|
| True Power (kW) | 750 kW | 10 W | ±3% |
| Apparent Power (kVA) | 750 kVA | 10 VA | ±3% |
| Reactive Power (kVAR) | 750 kVAR | 10 VAR | ±4% |
| Active Energy (kWh) | 9999 kWh | 0.001 kWh | ±3% |
| Power Factor | 0.3 to 1.0 | 0.001 | ±0.02 |
| Phase Angle (φ) | –180° to +180° | 1° | ±2° |
| AC Current (True RMS) | 1000 A | 100 mA | ±2% |
| AC Voltage (True RMS) | 750 V | 0.1 V | ±1.2% |
| Frequency | 50 Hz to 200 Hz | 1 Hz | — |
| Clamp Jaw Opening | 2.16" (55 mm) | — | — |
| Display | Dual backlit LCD, 9999 counts + bar graph | — | — |
| Safety Rating | CAT IV 600 V | — | — |
| PC Interface | USB with software | — | — |
| Dimensions / Weight | 11.5 x 3.75 x 1.5" (292 x 95 x 38 mm) / 18.4 oz (522 g) | — | — |
