Description

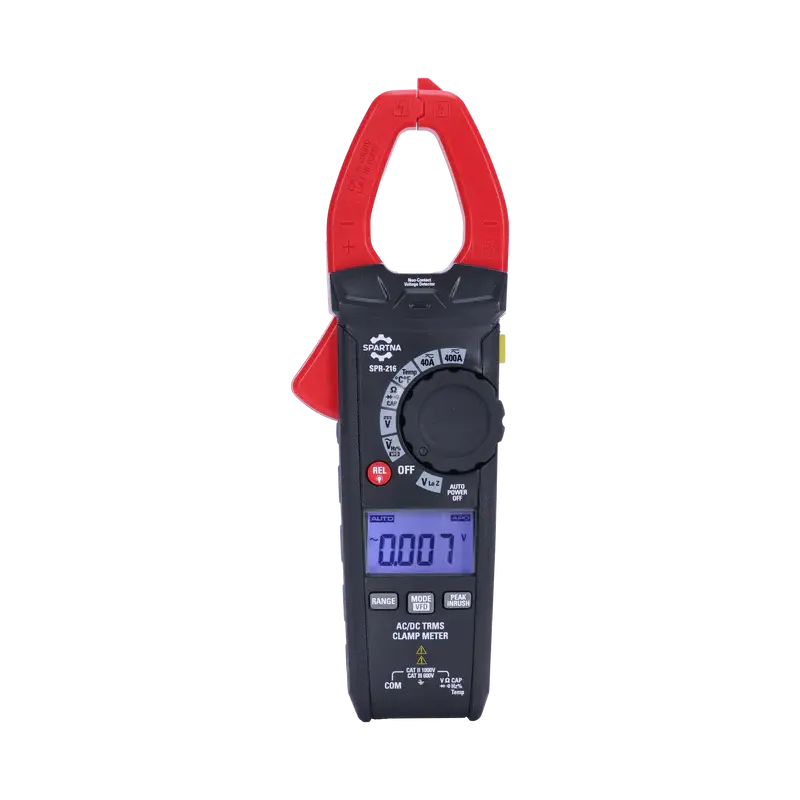

The SPR-216 is a 400A AC/DC True RMS clamp meter designed for accurate electrical measurements in professional industrial and electrical environments. It supports comprehensive measurement functions including current, voltage, resistance, capacitance, frequency, temperature, and more. The meter features a backlit LCD display, auto-ranging capability, and safety protections rated for CAT III 600V / CAT II 1000V applications. With additional functions like diode testing, continuity check, non-contact voltage detection, and peak/inrush current measurement, it provides versatile functionality for electrical diagnostics and troubleshooting.
Features
- True RMS AC/DC Current Measurement: Up to 400A for accurate readings on non-linear loads
- AC/DC Voltage Measurement: Up to 1000V with high precision
- Resistance Measurement: Up to 40MΩ for circuit testing
- Capacitance Measurement: Up to 99.99mF for component analysis
- Frequency Measurement: 10Hz to 100kHz for signal analysis
- Duty Cycle Measurement: For PWM and signal analysis
- Temperature Measurement: Using Type K thermocouple probe
- Diode and Continuity Test: With audible indication for quick testing
- Non-Contact AC Voltage Detection: Safe voltage presence verification
- Peak/Inrush Current and Voltage Measurement: Captures transient signals
- Data Hold and Flashlight Function: For convenient measurements in dark areas
- Backlight and REL Mode: Enhanced visibility and relative measurements
- Auto Power-Off: After 15 minutes to conserve battery life
- Overload Protection: On all ranges for safety
- Safety Category CAT III 600V / CAT II 1000V: Safe for high voltage work
Specifications
| Specification | Details |
|---|---|
| Current Measurement | AC/DC: 40.00A (0.01A resolution), ±(2.0% + 8 digits) AC/DC: 400.0A (0.1A resolution), ±(2.5% + 8 digits) |
| Voltage Measurement | AC/DC: 4.000V to 1000V Accuracy: ±(1.0% to 1.5% + 5 digits) |
| Resistance | Range: 400.0Ω to 40.00MΩ Accuracy: ±(1% to 3% + 2 to 8 digits) |
| Capacitance | Range: 0.01nF to 99.99mF Accuracy: ±(3.0% to 5% + 5 to 20 digits) |
| Frequency | Voltage: 10Hz to 100kHz Current: 45Hz to 1kHz Accuracy: ±(1.0% + 5 digits) |
| Duty Cycle | Range: 20.0% to 80.0% Accuracy: ±(1.2% + 10 digits) |
| Temperature | Range: -20°C to 1000°C (-4°F to 1832°F) Accuracy: ±(3% + 3°C or 5°F) |
| Diode Test | Forward current ~1mA, open-circuit voltage max 3.0V |
| Continuity | Buzzer sounds when resistance <50Ω |
| Display | 3¾-digit (4000 counts), backlit LCD |
| Clamp Jaw Opening | Approx. 1.2" (30mm) |
| Battery | 3 x AAA 1.5V batteries |
| Battery Life | ~30 hours (backlight ON), ~100 hours (backlight OFF) |
| Safety Category | CAT III 600V / CAT II 1000V |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Auto Power Off | After approx. 15 minutes |
