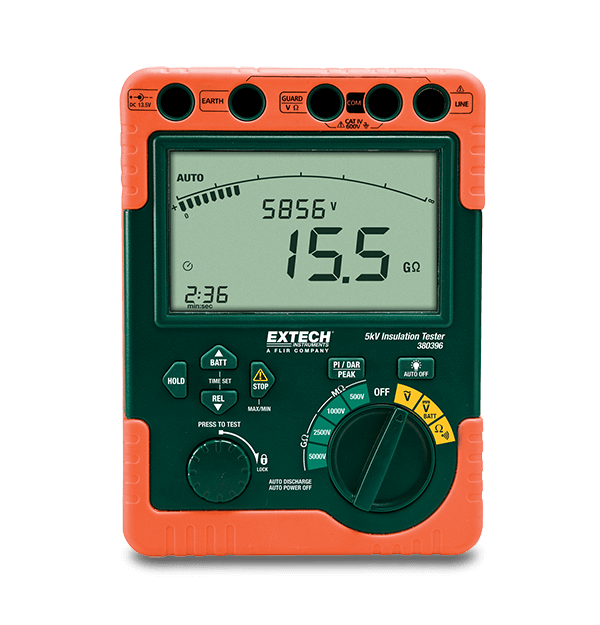

Extech 380396 Digital High Voltage Insulation Tester

EXTECHSKU: 380396
filler

Price:
Translation missing: en.product.general.price 3,450.00 SR (Including VAT)
3,000.00 SR (Excluding VAT)
Stock:
Sold out

Description

The Extech 380396 is a digital high voltage insulation tester designed for wide-range measurement up to 5kV. It can measure insulation resistance up to 60GΩ.

  • Test voltages of 500V, 1000V, 2500V, and 5000V.

  • Measures insulation resistance up to 60GΩ.

  • Large 6000-count display with bargraph and backlight.

  • Polarization Index (PI) and Dielectric Absorption Ratio (DAR) measurements.

  • Measures AC/DC Voltage from 0 to 600V with Max/Min, Peak, and Relative functions.

  • Features a 1 to 15-minute timer function for IR measurements.

  • Includes resistance measurement.

  • Equipped with an autoranging function.

  • Provides indication of output voltage and discharge voltage.

  • Features an auto-discharge function and voltage output warning function.

  • Includes auto power off and battery check.

Specification Range
Test Voltage 500V/1000V/2500V/5000V
Insulation Resistance 0 to 6MΩ, 0 to 60MΩ, 0 to 600MΩ, 0 to 6GΩ, 0 to 60GΩ
Insulation Resistance Accuracy ±2.5% of reading
AC/DC Voltage 0 to 600V
AC/DC Voltage Accuracy ±1% of reading
Resistance 0 to 600Ω
Resistance Accuracy ±1.5% of reading
Continuity 50Ω
Power Eight type C batteries
Dimensions 7.8 x 5.8 x 3.4 inches (198 x 148 x 86mm)
Weight 3.2 lbs (1438g)
