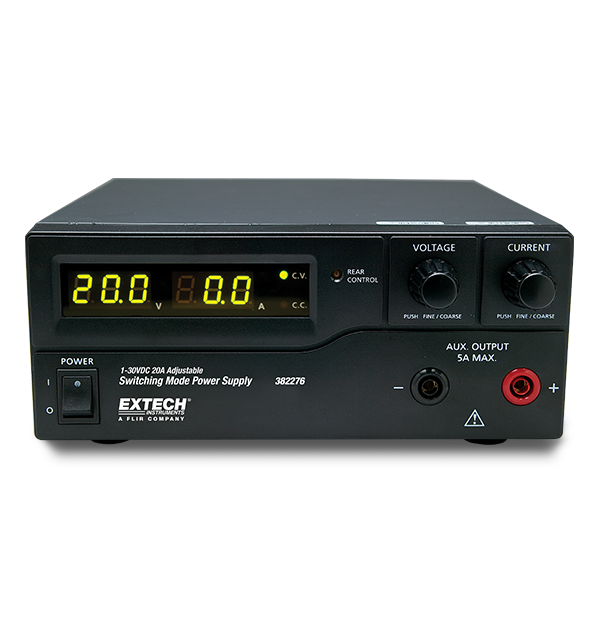

Extech 382276 – 30V / 20A Laboratory Grade Switching Mode DC Power Supply (600W)

EXTECHSKU: 382276
filler

Price:
Translation missing: en.product.general.price 1,897.50 SR (Including VAT)
1,650.00 SR (Excluding VAT)
Stock:
Sold out

Description

The Extech 382276 (230VAC) are high-performance, laboratory-grade switching mode DC power supplies delivering up to 600W of adjustable power (0–30V / 0–20A). Designed for R&D, production testing, and advanced electronics labs, they feature dual 3-digit LED displays, remote control capability, user-definable presets, and automatic CV/CC crossover. Includes over-voltage, over-temperature, and short-circuit protection with a thermostatically controlled fan for quiet, efficient operation.


  • Adjustable 0–30V / 0–20A output — 600W max power
  • Dual 3-digit LED displays for simultaneous voltage and current monitoring
  • Remote control for output voltage, current, and On/Off functions
  • Two user-defined voltage/current presets + one factory preset (13.8V/20A)
  • Automatic Constant Voltage (CV) / Constant Current (CC) crossover
  • Fine and coarse tuning via dual-action control knob
  • Thermostatic fan control — adjusts speed from zero to full based on load
  • Over-voltage, over-temperature, and short-circuit protection
  • High RFI immunity and low EMI for sensitive applications
  • Compact, low-profile design saves bench space
  • Includes power cord






Output Voltage 1 – 30 100mV ±(0.5% + 2 digits) V
Output Current 1 – 20 100mA ±(0.5% + 2 digits) A
Load Voltage Regulation 50mV max
Line Voltage Regulation 20mV max
Load Current Regulation 100mA min
Line Current Regulation 50mA min
Ripple & Noise < 5 mV RMS
Input Power 382275: 120VAC, 50/60Hz
382276: 230VAC, 50/60Hz
Dimensions 7.9 x 3.5 x 8.5 in (200x90x215mm)
Weight 5.7 lb (2.6 kg)
