Description

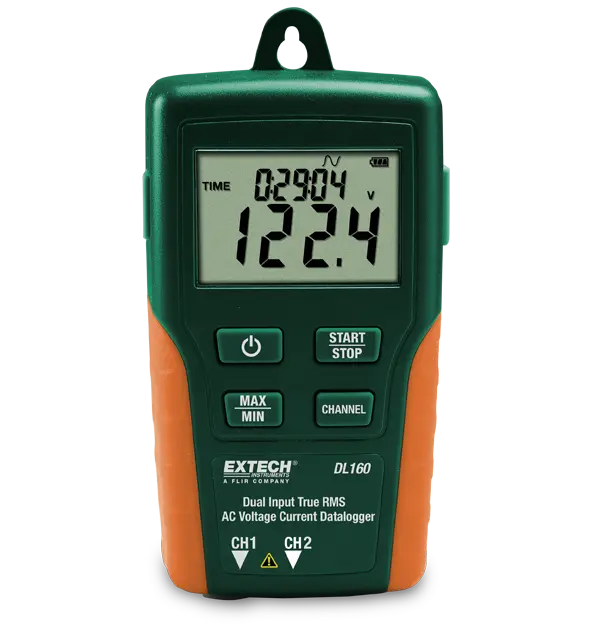

The DL160 is a Dual Input True RMS AC Voltage/Current Data logger. Simultaneously data log 2 channels of up to 256,000 readings of TRMS AC Voltage (600V) or Current (200A) or one AC Voltage and one AC Current input with a user programmable sample rate from 1 second to 24 hours. LCD displays time/date, current reading, and min/max. Readings can be downloaded to your PC via the USB interface. Featuring Normal, Peak, and Capture (user specified trigger level) recording modes. Complete with 2 current clamps, two sets of test leads, 2 sets of alligator clips, software, USB cable, Universal AC Adapter, and 4 x AAA and 2 x CR2032 Batteries.
Features
- Simultaneously measure two AC Voltage inputs or two AC Current inputs or one AC Voltage and one AC Current input
- Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet
- LCD indicates time/date, current readings and Min/Max
- Auto Power off and battery check
- Complete with 2 Current and Voltage sensor modules, two sets of test leads and alligator clips, USB cable, Windows® software, AC Adaptor and battery
Specifications
| AC Current | 10 to 200A |
|
|
|---|---|---|---|
| AC Current Basic Accuracy | ±(2% of reading ± 1A) |
|
|
| AC Current Max Resolution | 0.1A |
|
|
| AC Voltage | 10 to 600V |
|
|
| AC Voltage Basic Accuracy | ±(2% of reading ±1V) |
|
|
| AC Voltage Max Resolution | 0.1V |
|
|
| Memory | 262,000 points (single channel), 131,000 (dual channels) |
|
|
| PC Interface | USB |
|
|
| Sampling Rate | 1 second to 24 hours |
|
|
| True RMS | Yes |
|
|
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|||
|
|
|
||
