Description

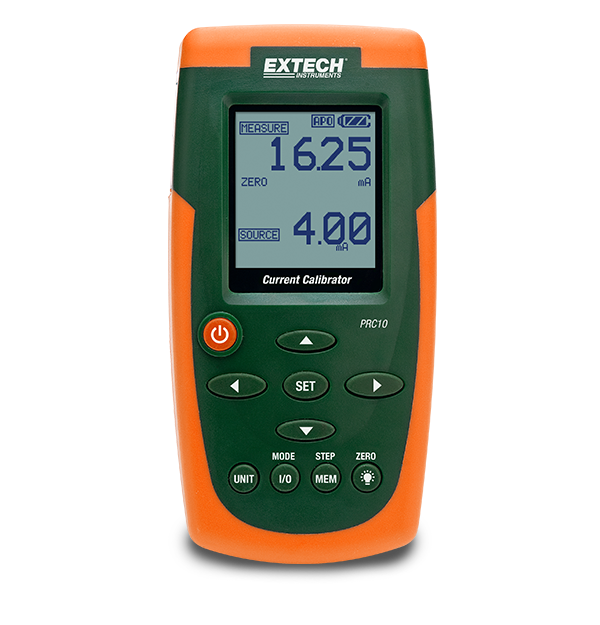

The Extech PRC10 is a compact, palm-sized current calibrator and meter designed for field and bench calibration of 4–20 mA process devices such as transmitters, transducers, controllers, and indicators. It sources 0 to 24 mA (–25% to 125%) with high accuracy (±0.01% ±1 digit) and includes a built-in 24V DC power supply to energize 2-wire current loops—eliminating the need for external loop power. Featuring a large backlit dot-matrix LCD, five user-definable calibration presets, and extended battery life from a large internal battery bank, the PRC10 is ideal for process control technicians, instrument engineers, and maintenance professionals requiring reliable, portable calibration in industrial environments.
Features
- Sources 0 to 24 mA (–25% to 125%) with ±0.01% accuracy
- Built-in 24V DC power supply for 2-wire loop devices
- Measures 0 to 50 mA current signals (–25% to 230%)
- Large backlit dot-matrix LCD for clear readout
- Five user-adjustable calibration presets for quick setup
- Standard banana input/output ports
- Extended runtime with large internal battery bank (6 x AA batteries)
- External AC adapter included for continuous operation
- Double-molded rugged housing for field durability
- Complete with test leads, alligator clips, universal AC adapter (100–240V), 6 AA batteries, and hard carrying case
Specifications
|
|
|
|---|---|
| Source Output | 0 to 24 mA (–25% to 125%) |
| Load Compliance | Up to 1000 Ω |
| Loop Power Supply | 24V DC (for 2-wire devices) |
| Measurement Range | 0 to 50 mA |
| Resolution | 0.01 mA (0–19.99 mA), 0.1 mA (20–24 mA) |
| Accuracy | ±0.01% of reading ±1 digit |
| Display | Backlit dot-matrix LCD |
| Power Supply | 6 x AA batteries or AC adapter |
| Dimensions | 6.3 x 3.2 x 1.7" (159 x 80 x 44 mm) |
| Weight | 8.2 oz (232 g) (excluding batteries) |
