Description

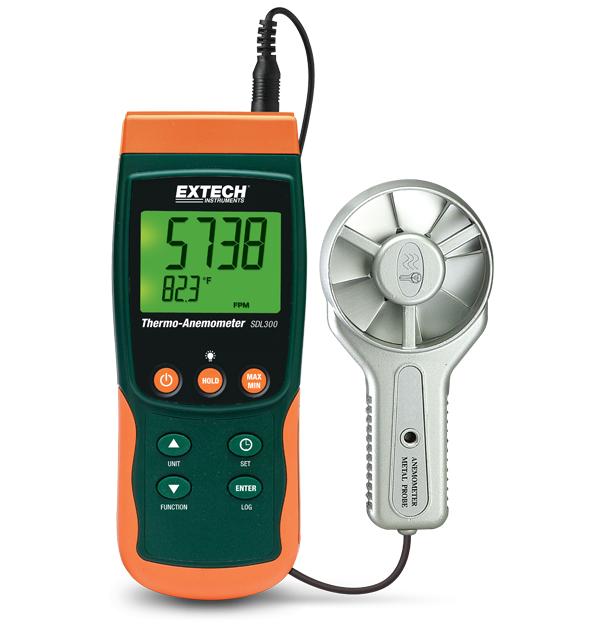

The Extech SDL300 is a high-performance thermo-anemometer that simultaneously measures air velocity and temperature using a rugged metal vane sensor rated for temperatures up to 158°F (70°C) and air speeds up to 6900 ft/min. Designed for HVAC, environmental, and industrial applications, it logs timestamped data directly to a 2 GB SD card in Excel®-compatible CSV format for easy transfer and analysis on a PC. With a user-selectable sampling interval from 1 to 3600 seconds, Type K/J thermocouple inputs for external high-temperature measurements (up to 2372°F / 1300°C), and a 39" (1 m) sensor cable, the SDL300 offers versatile and reliable airflow diagnostics. It includes 6 AA batteries, SD card, metal vane probe, and hard carrying case.
Features:
- Simultaneous display of air velocity and temperature on large 9999-count LCD
- Metal vane sensor withstands 158°F (70°C) and airflow up to 6900 ft/min
- Logs up to 20 million data points to 2 GB SD card in Excel® format
- Adjustable datalogging interval: 1 to 3600 seconds
- Type K and Type J thermocouple inputs for external temperature measurements
- Records and recalls Min/Max values; Data Hold function
- Low-friction ball bearing vane ensures ±2% velocity accuracy
- Includes 39" (1 m) sensor cable for remote or duct measurements
- Auto power-off (can be disabled)
- Complete with 6 AA batteries, 2 GB SD card, metal vane probe, and hard carrying case
Specifications:
|
|
|
|
|
|---|---|---|---|
| Air Velocity | 0.4 to 35 m/s | 0.1 m/s | ±2% of reading |
|
|
60 to 6900 ft/min | 1 ft/min | ±2% of reading |
|
|
0.7 to 78.2 mph | 0.1 mph | ±2% of reading |
|
|
0.6 to 68 knots | 0.1 knot | ±2% of reading |
|
|
1.0 to 126.0 km/h | 0.1 km/h | ±2% of reading |
| Air Temperature (Vane) | 32 to 158°F (0 to 70°C) | 0.1°F/°C | ±1.5°F (±0.8°C) below 60°C |
| Type K Temperature | –148 to 2372°F (–100 to 1300°C) | 0.1°F/°C | ±(0.4% + 1.8°F / 1°C) |
| Type J Temperature | –148 to 2192°F (–100 to 1200°C) | 0.1°F/°C | ±(0.4% + 1.8°F / 1°C) |
| Datalogging Interval | 1 to 3600 seconds | — | — |
| Memory Capacity | Up to 20,000,000 data points (2 GB SD card) | — | — |
| Sensor Cable Length | 39" (1 m) | — | — |
| Power Source | 6 × AA batteries | — | — |
| Dimensions | 7.2 x 2.9 x 1.9" (182 x 73 x 47.5 mm) | — | — |
| Weight | 17.2 oz (487 g) | — | — |
Downloads:
