Description

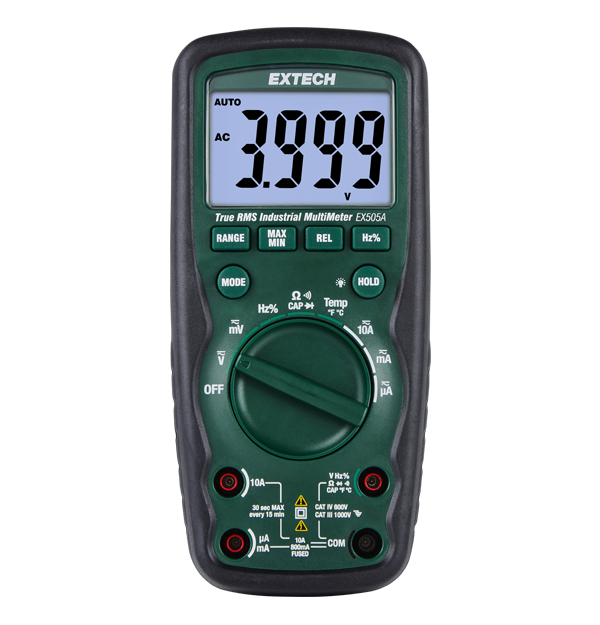

The Extech EX505A is a rugged industrial multimeter rated CAT IV-600V with True RMS accuracy, IP67 waterproof/dustproof protection, and 2m (6.5 ft) drop resistance. It measures AC/DC voltage up to 1000V, current up to 10A, resistance, capacitance, frequency, temperature (Type K), and includes LoZ mode to eliminate ghost voltages. Ideal for electricians, HVAC, and field technicians working in harsh environments.
Features
- CAT IV-600V / CAT III-1000V safety rated
- True RMS for accurate readings on non-linear loads
- IP67 waterproof and dustproof
- 2m (6.5 ft) drop-proof design
- LoZ (Low Impedance) mode to detect ghost voltages
- Measures voltage, current, resistance, capacitance, frequency, duty cycle, and Type K temperature
- 6000-count backlit display with bargraph
- Data Hold, Min/Max, and Auto Power Off
- Includes test leads, Type K probe, magnetic strap, and soft case
Specifications
|
|
|
|
|---|---|---|
| Display Counts | 6000 | — |
| Basic Accuracy | ±0.5% | — |
| AC/DC Voltage | Up to 1000V | V |
| AC/DC Current | Up to 10A | A |
| Resistance | Up to 40MΩ | Ω |
| Capacitance | Up to 10mF | F |
| Frequency | Up to 10MHz | Hz |
| Temperature (Type K) | -40 to 1832°F (-40 to 1000°C) | °F / °C |
| Safety Rating | CAT IV-600V, CAT III-1000V | — |
| Protection | IP67, 2m drop-proof | — |
