Description

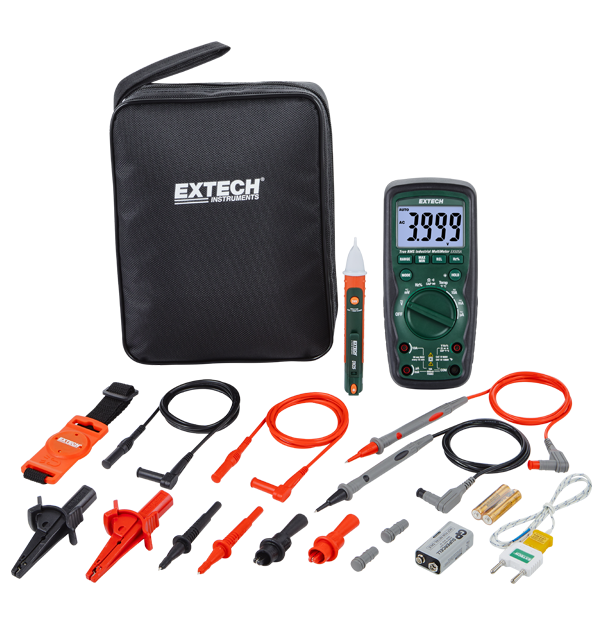

The Extech EX505A-K is a comprehensive industrial electrical testing kit centered around the rugged EX505A multimeter — a CAT IV-600V, IP67 waterproof, 2m drop-proof True RMS meter. The kit also includes the DV25 dual-range AC voltage detector (24–1000V), an 8-piece professional test lead kit (TL808), a Type K thermocouple probe, magnetic hanging strap, and a soft carrying case. Designed for electricians, HVAC technicians, and industrial professionals who demand safety, durability, and precision in harsh environments.
Features
-
EX505A Multimeter:
- CAT IV-600V / CAT III-1000V safety rated
- True RMS accuracy for non-linear loads
- IP67 waterproof and dustproof
- 2m (6.5 ft) drop-proof housing
- LoZ (Low Impedance) mode to eliminate ghost voltages
- Measures AC/DC voltage (up to 1000V), current (10A), resistance (40MΩ), capacitance (10mF), frequency (10MHz), and Type K temperature
- 6000-count backlit display with analog bargraph
- Data Hold, Min/Max, Auto Power Off
-
DV25 AC Voltage Detector:
- Dual range: 24–1000V AC and 100–1000V AC
- Audible and visual (LED + flashlight) alerts
- CAT IV-1000V rated, double-molded for safety
-
Complete Kit Includes:
- EX505A multimeter
- DV25 voltage detector
- TL808 8-piece test lead kit (CAT III-1000V)
- Type K bead-wire thermocouple probe
- Magnetic hanging strap
- Soft protective carrying case
Specifications
|
|
|
|
|---|---|---|
| Multimeter Safety | CAT IV-600V, CAT III-1000V | — |
| Display | 6000 counts, backlit LCD | — |
| Voltage Range | Up to 1000V AC/DC | V |
| Current Range | Up to 10A | A |
| Resistance | Up to 40MΩ | Ω |
| Capacitance | Up to 10mF | F |
| Frequency | Up to 10MHz | Hz |
| Temperature | -40 to 1832°F (-40 to 1000°C) | °F / °C |
| Protection | IP67, 2m drop-proof | — |
| Voltage Detector | 24–1000V AC / 100–1000V AC | V |
| Test Leads | CAT III-1000V rated | — |
