Description

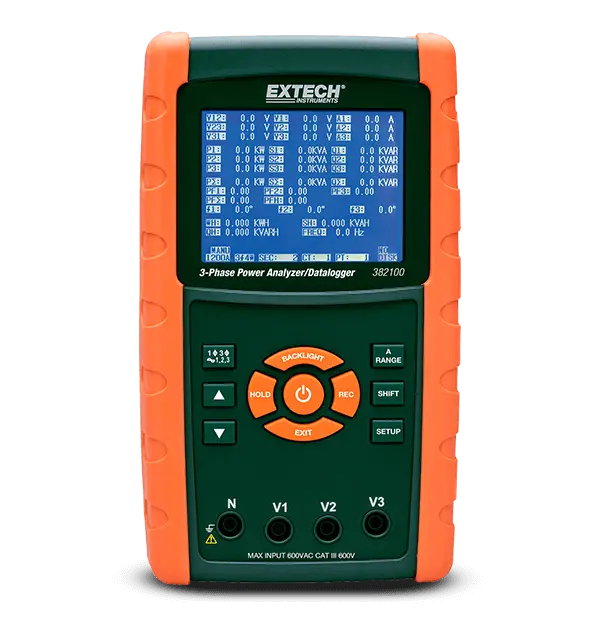

The Extech 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground), A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. It comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240 V), case, and user manual.
Features
- Measures single phase, 3-phase/3-wire or 3-phase/4-wire systems
- Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
- MWH, MVAh, MVARh energy measurements
- Current measurements to 1200A and voltage measurements to 600V
- Adjustable CT ratio (1 to 600) and PT ratio (1 to 1000) for high power distribution systems
- Automatically logs up to 30,000 sets of measurements on 2GB SD memory card
- Captured measurements saved in Microsoft Excel® format for easy transfer to your PC
- User-programmable sampling time from 2 to 7200 seconds
- Large dot-matrix, sun-readable, backlit LCD displays 35 parameters simultaneously
- CAT III 600V safety rating
Specifications
| AC Current | 1200A | ||
|---|---|---|---|
| AC Current Basic Accuracy | ±(0.5% of reading + 0.5A) | ||
| AC Voltage | 600.0V | ||
| AC Voltage Basic Accuracy | ±(0.5% of reading + 0.5V) | ||
| Active Power | 9.999MW | ||
| Active Power Basic Accuracy | ±(1.0% of reading + 0.08KW) | ||
| Active Power Energy | 0.0kWh to 9.999MWHr | ||
| Active Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KWh) | ||
| Apparent Power | 9.999MVA | ||
| Apparent Power Basic Accuracy | ±(1.0% of reading + 0.08KVA) | ||
| Apparent Power Energy | 0.0KVAh to 9.999MVAh | ||
| Apparent Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVAh) | ||
| Frequency | 45Hz to 65Hz | ||
| Frequency Basic Accuracy | ±0.1Hz | ||
| Memory | 60,000 readings (2GB SD memory Card) | ||
| Phase | -180° to +180.0° | ||
| Phase Basic Accuracy | ±1° | ||
| Power Factor | 0.00 to 1.00 | ||
| Power Factor Basic Accuracy | ±0.04 | ||
| Reactive Power | 9.999MVAR | ||
| Reactive Power Basic Accuracy | ±(1.0% of reading + 0.08KVAR) | ||
| Reactive Power Energy | 0.0kVARh to 9.999MVARh | ||
| Reactive Power Energy Basic Accuracy | ±(2.0% of reading + 0.08KVARh) | ||
| True RMS | Yes | ||
