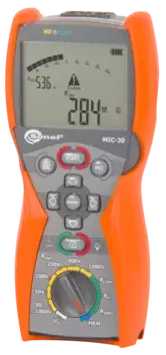

SONEL INSULATION RESISTENCE METER MIC-30 1000V

Sonel
filler
Price:
0.00 SR (Including VAT)
0.00 SR (Excluding VAT)
Stock:
Sold out
Contact us

Description

The Sonel MIC-30 insulation resistance meter is a perfect response to the expectations of users who deal with the testing of insulation of electrical installations in a repeated manner, e.g. in single- and multi-family buildings, as well as in public utility buildings and small plants and workshops. The device enables the setting of the measurement voltage within the range from 50 V to 1000 V in 10 V steps, which makes it perfect for diagnosing electrical, control, telecommunications and ICT facilities.
    • measurement of insulation resistance up to 100 GΩ thanks to max 1000 V measurement voltage
    • designed for harsh environmental conditions conditions – IP67 ingress protection
    • excellent for repeatable measurements – memory of 12,000 records and UNI-Schuko adapter for sockets
    • allows for testing electrical continuity – RCONT 200 mA function
    • checking start capacitors in motors thanks to capacity measurement function

    …and much more
    • measurement voltage selected from: 50, 100, 250, 500, 1000 V or freely configurable within the range of 50…1000 V in steps of 10 V
    • continuous reading of measured insulation resistance or leakage current
    • automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement
    • sound signalling of five-second time intervals, facilitating capture of time characteristics
    • timing of measurement times T1, T2 and T3 for measurement of one or two absorption coefficients, within the range of 1… 600 seconds
    • readings of actual measurement voltage during measurement
    • protection against measurement of live objects
    • three-lead measurement – additional lead GUARD
    • capacitance measurement during measurement of RISO
    • low-voltage measurement of circuit continuity and resistance
    • continuity test of protective conductors and equipotential bonding with current IISO≥200 mA flowing in two directions in compliance with EN 61557-4
    • measurement of direct and alternating voltages within the range of 0…600 V

Range Resolution Accuracy
0.0…999.9 kΩ 0.1 kΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…9.999 MΩ 0.001 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
10.00…99.99 MΩ 0.01 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…250.0 MΩ (for Un = 50 V) 0.1 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…500.0 MΩ (for Un = 100 V) 0.1 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…999.9 MΩ (for Un ≥ 250 V) 0.1 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…2.000 GΩ (for Un = 250 V) 0.001 GΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…9.999 GΩ (for Un ≥ 500 V) 0.001 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
10.00…20.00 GΩ (for Un ≥ 500 V)** 0.01 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
10.00…99.99 GΩ (for Un = 1000 V) 0.01 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
100.00 GΩ (for Un = 1000 V) 0.1 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*


MIC-30 Datasheet

MIC-30 Usermanual
