Description

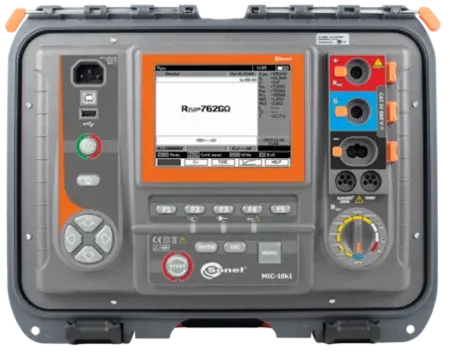

The Sonel MIC-10k1 insulation resistance meter is a proven choice for professionals who require the highest precision and extensive measurement capabilities. This model is one of the most advanced insulation resistance meters available on the market. Recommended for representatives of electrical services who professionally deal with inspecting the condition and taking care of good condition of electroinsulating materials.
The Sonel MIC-10k1 is a comprehensive diagnostic instrument used for measuring insulation resistance of electrical power engineering objects such as: single and multi-core cables, transformers, motors and generators, capacitors or circuit breakers and other power station equipmen
Features
- Insulation resistance measurement up to 40 TΩ
- Measurement voltage - any in the range of 50…10000 V, 50…1000 V with steps of 10 V, 1…10 kV with steps of 25 V
- Continuous indication of measured insulation resistance or leakage current
- Automatic discharge of measured object capacitance voltage after the end of insulation resistance measurement
- Acoustic signalling of 5-second intervals to facilitate capturing time characteristics
- Adjustable measuring time - up to 99'59'’
- T1, T2 and T3 test times for measuring one or two absorption coefficients from the range of 1…600 s
- Polarization index (PI), absorption coefficients Ab1, Ab2 and dielectric absorption ratio (DAR) measurement
- Indication of actual test voltage during measurement
- 1.2 mA, 3 mA or 6 mA test current
- Insulation resistance measurement using two- or three-wire method
- Measurements with test leads up to 20 m
- Protection against measuring live objects
- Automatic measurement of multiple core cables with the optional AutoISO-5000 adapter (for MIC-10k1 max. measuring voltage 5 kV)
- Measurement of capacitance during the measurement of RISO
- Measurement of temperature (with optional probe ST-1)
- Step voltage insulation resistance measurement (SV)
- Dielectric Discharge calculation (DD)
- Damage location (burnout)
- Digital filters for measurements with strong interferences
- It can work in an environment where electromagnetic interferences of 500 kV occur
- Measurement of DC and AC voltages within the range of 0…1500 V
- Memory of measurement results: 990 cells (10 000 records / 8 MB)
- Time of operation on a single battery charge: ca. 5 h
Specifications
| Range | Resolution | Accuracy |
|---|---|---|
| 0…999 kΩ | 1 kΩ | ±(3% m.v. + 10 digits) |
| 1.00…9.99 MΩ | 0.01 MΩ | ±(3% m.v. + 10 digits) |
| 10.0…99.9 MΩ | 0.1 MΩ | ±(3% m.v. + 10 digits) |
| 100…999 MΩ | 1 MΩ | ±(3% m.v. + 10 digits) |
| 1.00…9.99 GΩ | 0.01 GΩ | ±(3% m.v. + 10 digits) |
| 10.0…99.9 GΩ | 0.1 GΩ | ±(3% m.v. + 10 digits) |
| 100…999 GΩ | 1 GΩ | ±(3.5% m.v. + 10 digits) |
| 1.00…9.99 TΩ | 0.01 TΩ | ±(7.5% m.v. + 10 digits) |
| 10.0…40.0 TΩ | 0.1 TΩ | ±(12.5% m.v. + 10 digits) |
| UISO voltage | Range | Range for AutoISO-5000 |
| 50 V | 200 GΩ | 20.0 GΩ |
| 100 V | 400 GΩ | 40.0 GΩ |
| 250 V | 1.00 TΩ | 100 GΩ |
| 500 V | 2.00 TΩ | 200 GΩ |
| 1000 V | 4.00 TΩ | 400 GΩ |
| 2500 V | 10.00 TΩ | 400 GΩ |
| 5000 V | 20.0 TΩ | 400 GΩ |
| 10 000 V | 40.0 TΩ | - |
