Description

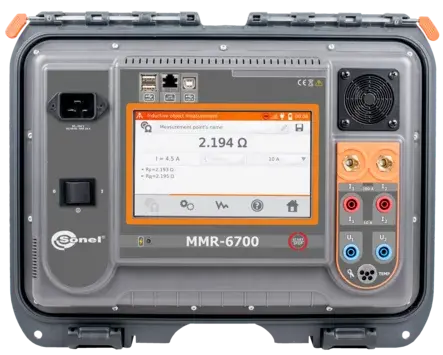

Versatile and multifunctional micrometer Sonel MMR-6700 - a single device for HV circuit breaker and transformer measurements. It is distinguished by a modern design and advanced solutions enabling measurements of resistive objects with high current. Additionally, the device has a module for measurement of inductive objects with current up to 10 A, which is a distinctive feature of MMR-6XXX series and a unique solution in its class.
Features
- measurements of resistive objects with current up to 200 A
- measurements of induction objects up to 10 A
- measurements of objects earthed on both sides (i.e. main joints of HV switches)
- measurement with one- or both-way current flow
- high immunity to outside interference
- measurements temperature of windings
- automatic compensation temperature of objects measured
- a state of art interface with a touch screen and expanded memory
- cooperation with a printer and a 2D barcode reader
- WiFi, USB and LAN communication
- IP67
- it can work in an environment where electromagnetic interferences of 400 kV occur
Specifications
| Range | Resolution | Accuracy | Test current / Voltage |
|---|---|---|---|
| 0.0…999.9 μΩ | 0.1 μΩ | ±(0.25% + 2 digits) | 50 A < I ≤ 200 A (200 mV) |
| 1.0000…1.9999 mΩ | 0.0001 mΩ | ±(0.25% + 2 digits) | 50 A < I ≤ 100 A (200 mV) |
| 0.0…999.9 μΩ | 0.1 μΩ | ±(0.25% + 2 digits) | 20 A < I ≤ 50 A (200 mV) |
| 1.0000…3.9999 mΩ | 0.0001 mΩ | ±(0.25% + 2 digits) | 20 A < I ≤ 50 A (200 mV) |
| 0.0…999.9 μΩ | 0.1 μΩ | ±(0.25% + 2 digits) | 10 A < I ≤ 20 A (160 mV) |
| 1.0000…7.9999 mΩ | 0.0001 mΩ | ±(0.25% + 2 digits) | 10 A < I ≤ 20 A (160 mV) |
| 0…999.9 μΩ | 0.1 μΩ | ±(0.25% + 2 digits) | 10 A (20 mV) |
| 1.0000…1.9999 mΩ | 0.0001 mΩ | ±(0.25% + 2 digits) | 10 A (200 mV) |
| 2.000…19.999 mΩ | 0.001 mΩ | ±(0.25% + 2 digits) | 10 A (200 mV) |
| 20.00…199.99 mΩ | 0.01 mΩ | ±(0.25% + 2 digits) | 10 A / 1 A (2 V / 200 mV) |
| 200.0…999.9 mΩ | 0.1 mΩ | ±(0.25% + 2 digits) | 1 A / 0.1 A (2 V / 200 mV) |
| 1.0000…1.9999 Ω | 0.0001 Ω | ±(0.25% + 2 digits) | 1 A / 0.1 A (2 V / 200 mV) |
| 2.000…19.999 Ω | 0.001 Ω | ±(0.25% + 2 digits) | 0.1 A (2 V) |
| 20.00…199.99 Ω | 0.01 Ω | ±(0.25% + 2 digits) | 10 mA (2 V) |
| 200.0…1999.9 Ω | 0.1 Ω | ±(0.25% + 2 digits) | 1 mA (2 V) |
