Description

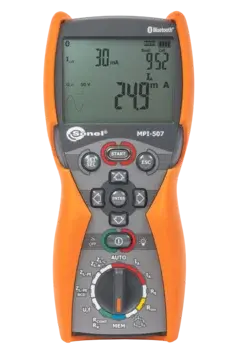

The multifunction meter of electrical installation parameters Sonel MPI-507 is a unique model of a handy meter used for precise measurements of electrical installation parameters. In its sleek and compact dimensions, the meter conceals a wealth of measurement functions. An additional advantage of this device is its extremely handy and ergonomic form, which makes it easy to carry and increases the comfort of work.
Features
-
Measurement of short circuit loop parameters
- Measurement of short circuit loop impedance in networks with rated voltage: 220/380 V, 230 V/400 V, 240/415 V and frequency 45…65 Hz, operating voltage range: 180…460 V
- Indication of short circuit loop resistance R and short circuit loop reactance X
- Measurements of short circuit loop impedance with 15 mA current, without tripping the RCD circuit breaker
- Maximum test current: 7.6 A (at 230 V), 13.3 A (at 400 V)
-
Testing RCD breakers of AC, A types
- Testing of prompt, short-delay and selective RCDs with rated current values 10, 15, 30, 100, 300, 500 mA
- Measurement of IA trip current and tripping time tA for currents 0.5 IΔn, 1 IΔn, 2 IΔn, 5 IΔn
- RE and UB measurement without RCD tripping
- Extended AUTO function of RCD measurement, with the possibility of measuring ZL-PE with low current
- Measurement of IA and tA during one RCD tripping
Specifications
| Manufacturer | Sonel S.A. | ||
|---|---|---|---|
| Part number | MPI-507 | ||
| Item Weight | 400 g | ||
| Product Dimensions | 12 x 10 x 14 cm; 400 g | ||
| Item model number | MPI-507 | ||
| Color | Multicolor | ||
| Material | Plastic | ||
| Power source type | Battery Powered | ||
| Special Features | Portable | ||
| Batteries Included? | Yes | ||
| Batteries Required? | Yes | ||
| Battery Cell Type | Alkaline | ||
Downloads
