Description

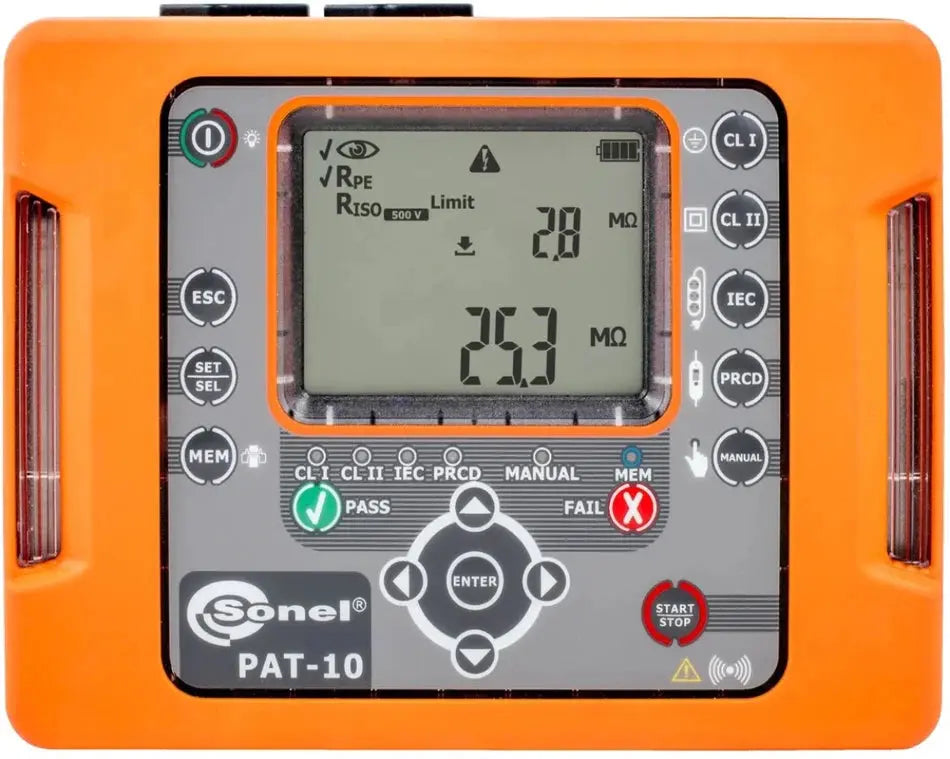

The PAT-10 meter is an innovative combination of small dimensions (and the associated full mobility) with advanced measuring systems, allowing fully automatic measurements of electrical equipment, IEC cables and extension cords - also those with PRCD.
Features
- LED test results indication
- quick access to the measurement procedures
- compact design and ergonomic soft case
- automatic measurement range selection
- measurement of protective conductor resistance with the currents: 200 mA, 10 A
- insulation resistance measurement 250 V, 500 V
- PRCD trip time testin
- measurement of equivalent, touch and differential leakage current
- measurement of mains voltage
- IEC lead test
- saving results to the memory
- printing labels with measurement results (option)
- works with software: Sonel Reader and Sonel PAT Analysis
- works with Sonel PAT Analysis Mobile application
Specifications
| Measurement of Protective Conductor Resistance | 200 mA and 10 A |
| Insulation Resistance Measurement | Up to 99.9 MΩ |
| Leakage Current Measurement | Equivalent, touch, and differential leakage current |
| PRCD Trip Time Testing | Yes |
| Mains Voltage Measurement | Yes |
| Weight | Approximately 1.55 kg |
| Dimensions | 200 mm x 180 mm x 77 mm |
