Description
- Description
- Features
- Specifications
- Downloads

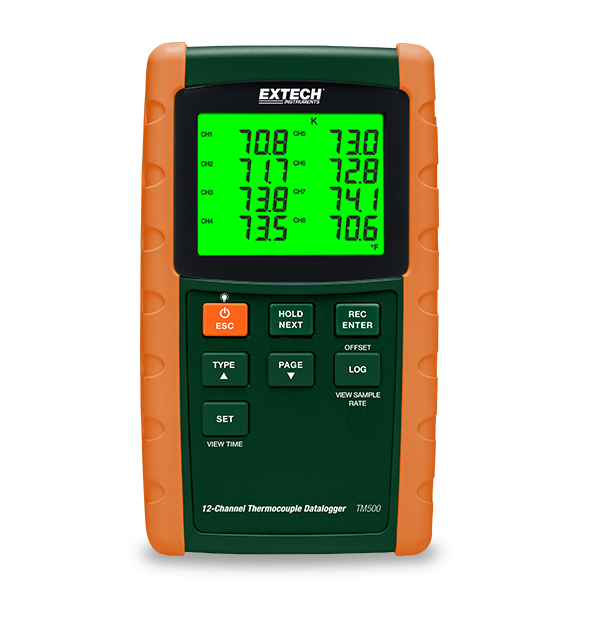

The Extech TM500 is a professional 12-channel thermocouple datalogger that supports six thermocouple types (J, K, E, T, R, S) for simultaneous multi-point temperature monitoring. It displays channels 1–8 or 9–12 on-screen, logs all 12 channels to a removable SD card in Excel® format, and features user-programmable sampling (1–3600 sec), Min/Max, Data Hold, offset adjustment, and manual storage of 99 readings. Ideal for thermal chamber analysis, quality control, HVAC, refrigeration, automotive testing, and oven core monitoring. Supplied with 8 AA batteries, 12 Type K bead wire probes (TP873), an SD card, and a hard carrying case.
• 12-channel datalogging with support for J, K, E, T, R, and S thermocouples
• Simultaneous recording of all 12 channels to SD card in Excel® format
• On-screen display of CH1–CH8 or CH9–CH12
• User-programmable sampling rate: 1 to 3600 seconds
• Offset adjustment for zero or relative measurements
• Stores 99 manual readings in internal memory
• Min/Max and Data Hold functions
• Auto power-off (with disable option)
• Includes 8 AA batteries, 12 Type K bead wire probes (TP873), SD card, and hard case
|
|
|
|---|---|
| Thermocouple Types | J, K, E, T, R, S |
| Temperature Ranges | Type J: -148 to 2102°F (-100 to 1150°C) |
|
|
Type K: -148 to 2372°F (-100 to 1300°C) |
|
|
Type T: -148 to 752°F (-100 to 400°C) |
|
|
Type E: -148 to 1652°F (-100 to 900°C) |
|
|
Type R: 32 to 3092°F (0 to 1700°C) |
|
|
Type S: 32 to 2732°F (0 to 1500°C) |
| Resolution | 0.1° / 1° (depending on range) |
| Basic Accuracy | ±0.4% rdg (+1.8°F/+1°C) for J/K/E/T; ±0.5% rdg (+5°F/+3°C) for R/S |
| Datalogging | To SD card (included), Excel® format with date/time stamp |
| Dimensions | 8.9 x 4.9 x 2.5" (225 x 125 x 64 mm) |
| Weight | 2.1 lbs (944 g) |
