Description

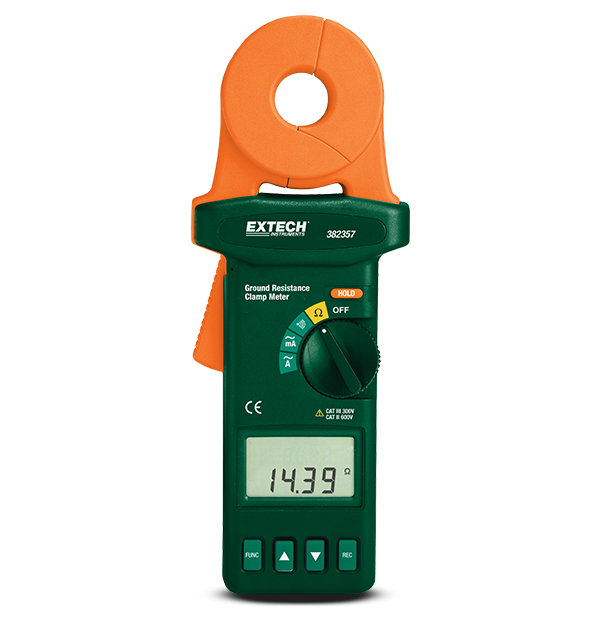

The Extech 382357 is a professional clamp-on ground resistance tester designed for fast, non-invasive measurement of grounding systems without disconnecting conductors or using auxiliary ground spikes. Ideal for telecom towers, power substations, and multi-point grounding systems, it measures ground resistance from 0.025Ω to 1500Ω and True RMS AC leakage current from 0.2mA to 30A. Features include 9999-count LCD, programmable Hi/Lo alarms, 116-point datalogging, auto self-calibration, and electrical noise detection to ensure measurement integrity.
Features
- Measures ground resistance from 0.025Ω to 1500Ω without auxiliary spikes
- True RMS AC leakage current measurement: 0.2mA to 30.00A
- Programmable datalogging (116 data points) with timestamp
- Programmable Hi/Lo alarm thresholds for pass/fail testing
- 0.9” (23mm) jaw opening fits large ground rods and conductors
- Automatic Self-Calibration at power-on for accuracy assurance
- Electrical Noise Detection alerts user to prevent false readings
- 9999-count backlit LCD with Data Hold function
- Includes verification resistance plate for field accuracy checks
- Auto Power Off and durable metal storage case included
Specifications
|
|
|
|
|
|
|---|---|---|---|---|
| Ground Resistance | 0.025 – 0.25 | 0.002 | ±(1.5% + 0.05) | Ω |
|
|
0.250 – 1.000 | 0.02 | ±(1.5% + 0.05) | Ω |
|
|
1.001 – 9.999 | 0.02 | ±(1.5% + 0.1) | Ω |
|
|
10.00 – 50.00 | 0.04 | ±(1.5% + 0.1) | Ω |
|
|
50.01 – 99.99 | 0.04 | ±(1.5% + 0.5) | Ω |
|
|
100.0 – 200.0 | 0.4 | ±(1.5% + 0.5) | Ω |
|
|
200.1 – 400.0 | 2 | ±(5.0% + 5) | Ω |
|
|
400.0 – 600.0 | 5 | ±(10% + 10) | Ω |
|
|
600.1 – 1500 | 20 | ±20% | Ω |
| AC Leakage Current (True RMS) | 0.300 – 1.000 | 0.001mA | ±(2.0% ± 0.05mA) | mA |
|
|
1.00 – 10.00 | 0.01mA | ±(2.0% ± 0.03mA) | mA |
|
|
10.0 – 100.0 | 0.1mA | ±(2.0% ± 0.3mA) | mA |
|
|
100 – 1000 | 0.1mA | ±(2.0% ± 0.3mA) | mA |
|
|
0.20 – 4.00 | 0.01A | ±(2.0% ± 0.03A) | A |
|
|
4.00 – 30.00 | 0.01A | ±(3.0% ± 0.03A) | A |
| Test Frequency | 1.667 | — | — | kHz |
| Display | 9999-count LCD | — | — | — |
| Jaw Opening | 0.9 | — | — | in (23mm) |
| Dimensions | 10.2 x 4.4 x 1.9 | — | — | in (258x110x47mm) |
| Weight | 24.7 | — | — | oz (700g) |
