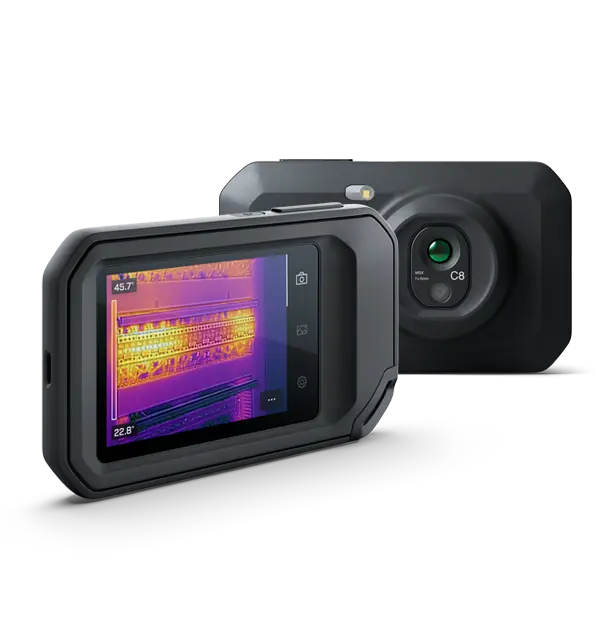

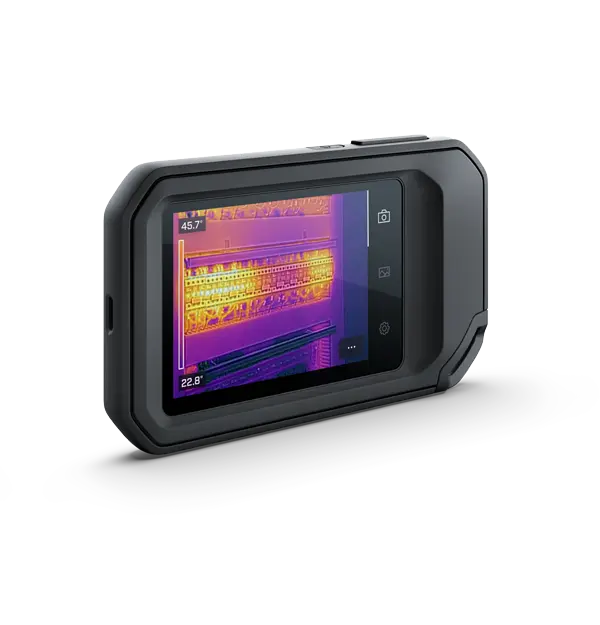

The Flir C8 is a compact thermal camera offering superior thermal imaging quality with a 320 × 240 (76,800 pixels) true thermal imager for faster and more accurate analysis to find faults and anomalies. It features Flir-patented MSX® enhancement, which embosses visible details onto thermal images for faster problem identification, and Isotherm which instantly detects if the temperature of equipment is exceeding a set threshold.
- Superior thermal imaging quality with 320 × 240 (76,800 pixels) true thermal imager.
- Flir-patented MSX® enhancement embosses visible details onto thermal images.
- Isotherm instantly detects if temperature exceeds a set threshold.
- Digital zoom, zoom pinch, 1 to 4× continuous.
- Touch screen, capacitive, IPS display technology.
- Wi-Fi, Bluetooth, and USB-C connectivity.
| Specification | Value |
|---|---|
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity/NETD | <50 mK |
| Field of View (FOV) | 35° × 27° |
| Minimum Focus Distance | 0.4 m (1.3 ft) |
| Spatial Resolution (IFOV) | 2.0 mrad/pixel |
| F-number | 1.4 |
| Image Frequency | 9 Hz |
| Focus | Focus free |
| Digital Zoom | Yes, zoom pinch, 1 to 4× continuous |
| Detector Type | Focal plane array, uncooled microbolometer |
| Spectral Range | 7.5–13 µm |
| Display Resolution | 640 × 480 pixels |
| Screen Size | 3.5 in |
| Touch Screen | Yes, capacitive |
| Object Temperature Range | -20°C to 450°C (-4°F to 842°F) |
| Accuracy | ±2°C (0°C to 100°C) / ±2% (100°C to 450°C) |
| Digital Camera Resolution | 5 MP |
| Wi-Fi | 802.11 a/b/g/n (2.4 and 5 GHz) |
| USB | USB 2.0, Type-C connector |
| Bluetooth | Yes |
| Battery Type | Rechargeable lithium-ion (built-in) |
| Battery Operating Time | 3 hours |
| Charging Time | 2 hours |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Encapsulation | IP54 |
| Weight | 0.19 kg (0.42 lb) |
| Dimensions | 138 × 84 × 34 mm (5.4 × 3.3 × 0.94 in) |
