Description

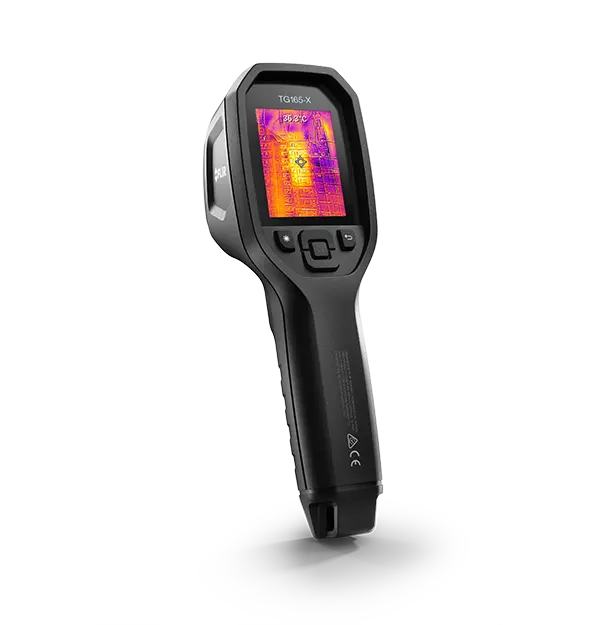

The Flir TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical breakdowns, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to Flir patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the Flir TG165-X is ready to go right out of the box.
Features
- • See temperature anomalies immediately in the
thermal image instead of searching for them
with a single-spot IR thermometer
• Speed inspections with a thermal view that
tells you instantly whether a target has
overheating components or hidden air leaks
• Measure a wide range of temperatures, from -25°C to 300°C (-13°F to 572°F), with an
accuracy of up to ±1.5°C (±3°F)
| IR Resolution | 80 × 60 pixels | ||
|---|---|---|---|
| IR Resolution | 80 × 60 pixels | ||
| Thermal Sensitivity/NETD | <70 mK | ||
| Thermal Sensitivity/NETD | <70 mK | ||
| Accuracy | 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)" | ||
| Accuracy | 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)" | ||
| Field of view (FOV) | 71° × 56°, adapts to the IR lens | ||
| Field of view (FOV) | 71° × 56°, adapts to the IR lens | ||
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), visual | ||
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), visual | ||
| Storage Media | eMMC 4 GB | ||
| Storage Media | eMMC 4 GB | ||
| Camera software update | Using USB cable or SD card | ||
| Color Palettes | Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava | ||
| Detector Pitch | 17 µm | ||
| Digital image enhancement | No | ||
| Display resolution | 320 × 240 pixels | ||
| Field of view (FOV) | 71° × 56°, adapts to the IR lens | ||
| Focal Plane Array (FPA) - Spectral range | Uncooled microbolometer/7.5–14 µm | ||
| Focus | Fixed | ||
| Gallery | Yes | ||
| Image Frequency | 8.7 Hz | ||
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), visual | ||
| IR Resolution | 80 × 60 pixels | ||
| Laser | Class 1 | ||
| Minimum Focus Distance | 0.3 m (0.98 ft) | ||
| Minimum Measurement Distance | 0.26 m (0.85 ft.) | ||
| Resolution | 2 MP (1600 × 1200 pixels) | ||
| Thermal Sensitivity/NETD | <70 mK |
