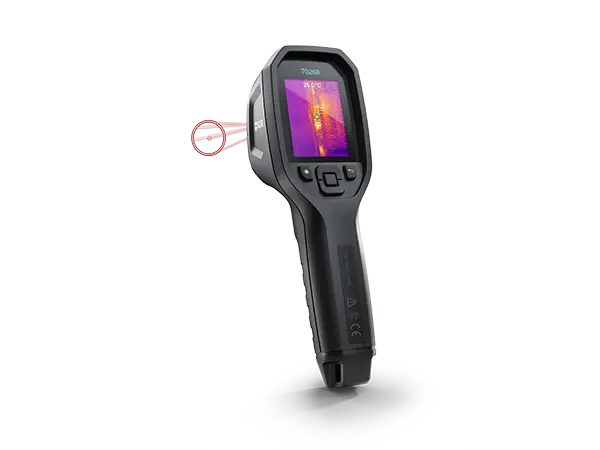

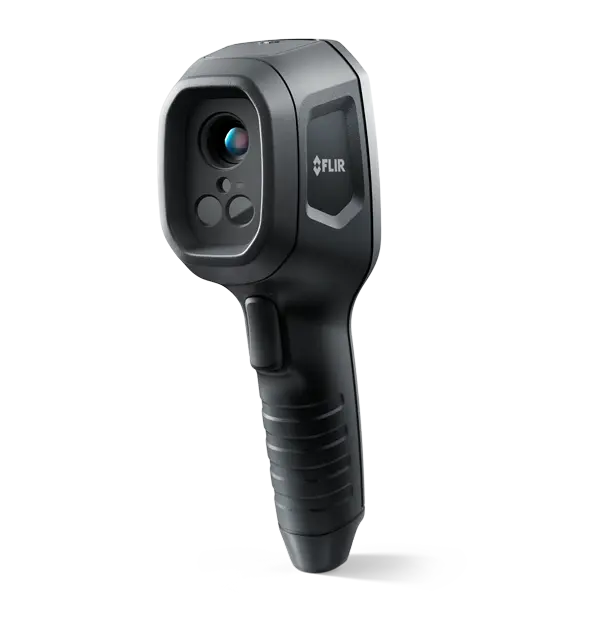

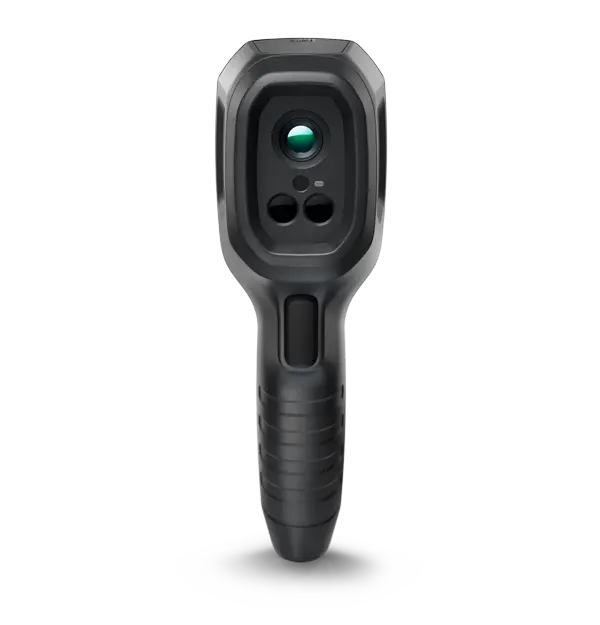

The Flir TG268 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, automotive, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting. Patented Flir MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, and super resolution allows you to upscale images from 160 × 120 to 320 × 240 for superior detail to help you accurately target potential faults and troubleshoot repairs. Then with the Flir Meterlink® app, you can quickly and efficiently capture and compare readings, analyze and share images and videos, and create reports and easily share them with your team.
• Accurately measure temperatures up to 400°C (752°F) with the
TG268 and 1080°C (1976°F) with the TG298
• Quickly locate problems with FLIR-patented MSX® image
enhancement for added detail and super resolution for upscaling
thermal images to 320 × 240
• Capture readings, images, and videos for analysis and sharing with
the FLIR METERLiNK® app
• Rugged IP54 rating and 2 m ( 6 ft ) drop tested with bright LED
flashlight and Type K thermocouple (*TG268 only)
| IR Resolution | 160 × 120 Super Resolution 320 × 240 |
||
|---|---|---|---|
| Thermal Sensitivity/NETD | <70 mK | ||
| Accuracy | ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) and 100°C to 400°C (213°F to 752°F) ±3% or 3°C (7°F) at −25°C to 0°C (−13°F to 32°F |
||
| Field of view (FOV) | 57° × 44° | ||
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading |
||
| Display | 320 × 240, 2.4 in color LCD | ||
| Storage Media | 8 GB | ||
| Built-in Digital Camera | Yes | ||
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava | ||
| Detector Pitch | 12 µm | ||
| Detector Type | Focal plane array (FPA), uncooled microbolometer | ||
| Digital image enhancement | Yes | ||
| Field of view (FOV) | 57° × 44° | ||
| Focus | Focus free | ||
| Gallery | Yes | ||
| Image Frequency | 8.7 Hz | ||
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading |
||
| IR Resolution | 160 × 120 Super Resolution 320 × 240 |
||
| Laser | Class 1 laser indicates the temperature measurement area; button-activated | ||
| Minimum Focus Distance | 0.3 m (0.98 ft) | ||
| Minimum Measurement Distance | 0.26 m (0.85 ft) | ||
| Non-radiometric IR video recording | Yes | ||
| Spectral Range | 7.5 - 14 µm | ||
| Thermal Sensitivity/NETD | <70 mK |
