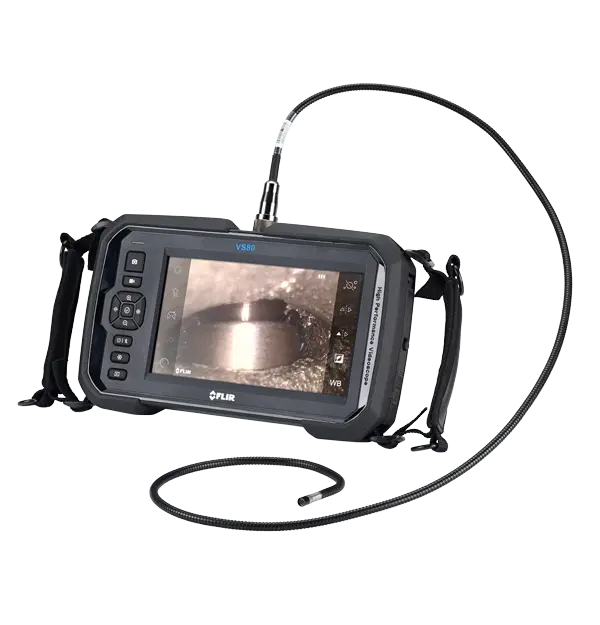

The Flir VS80 is a high-performance videoscope designed to inspect hard-to-reach and difficult-to-access components without disassembling equipment or damaging structures. It offers seven different probe options including thermal and articulating probes, HD image and video capture up to 1280 × 720, and up to eight hours of battery life.
- Inspects hard-to-reach and difficult-to-access components without disassembling equipment or damaging structures.
- Choose from seven different probe options including thermal and two- and four-way articulating probes.
- Historical or standard image comparisons with unique live reference image comparison.
- Captures up to 1280 × 720 HD resolution in still images and videos, with voice and text annotations.
- Inspects for up to eight hours without recharging the battery.
| Specification | Value |
|---|---|
| Touchscreen Size (diagonal) | 178 mm (7 in) |
| Display Resolution | 1024 × 600 |
| Battery Life | 8 hours |
| Data Capture Modes | JPEG, video, photo comments, voice comment |
| Wireless Mobile App Compatibility | FLIR Tools Mobile |
| Data Transfer | USB, micro SD, wireless (Wi-Fi) |
| Memory | Up to 64 GB micro SD (32 GB micro SD card included) |
| Warranty | 3 Year |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Operating Humidity | 10-95% Non-Condensing |
| Number of Probe Options | 7 |
| HD Camera Resolution | 1280 × 720 |
| Pipe Inspection Probe Option | 25 m (82 ft) long |
| Visual Probe FOV | 90° typical |
| Visual Probe Depth of Field | 10 mm to infinity |
| Thermal Camera Option | 160 × 120 (19,200 pixels) IR resolution |
