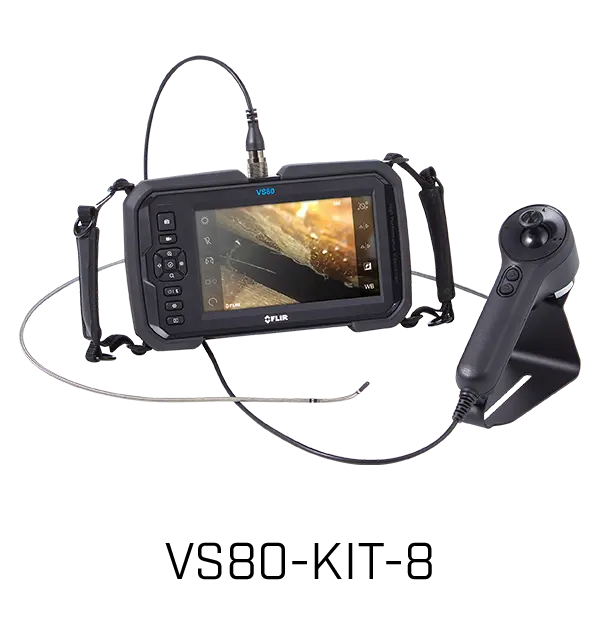

The Flir VS80 is a versatile, professional videoscope that you can rely on when inspecting locations that are difficult or unsafe to access. The wide range of unique compatible probes* with waterproof (IP67) camera tips give you flexibility for virtually any type of inspection. Options include: a 160 × 120 thermal camera, 2-way and 4-way articulating visual camera, 30 m plumbing spool with 512 Hz sonde probe locator, HD camera, and dual HD camera probe.
With one or more of the VS80 videoscope probes, you can perform a wide range of inspections, including industrial equipment maintenance, HVAC/R, building, and automotive applications. Easily maneuver the narrow camera probes into small openings and tight spaces, and view sharp, vivid images and videos from the large, 7-inch touchscreen display. Using the Flir Meterlink® Mobile app from a mobile device, you can view live images and video from the VS80, download saved files, and share them easily with customers or colleagues.
Inspect hard-to-reach and difficult-to-access components
without disassembling equipment or damaging structures
• Choose from seven different probe options including thermal
and two- and four-way articulating probes for the widest range
of inspections
• Make historical or standard image comparisons easily with
unique live reference image comparison
• Capture up to 1280 × 720 HD resolution in both still images
and videos. Comment on your findings with both voice and text
annotations
• Inspect for up to eight hours without recharging the battery
| Diameter | VS80-KIT-1, VS80-KIT-6: 5.5 mm VS80-KIT-2: 4.5 VS80-KIT-3, VS80-KIT-7: 4.9 mm VS80-KIT-5: 10 mm VS80-KIT-8: 3.9 mm VS80-IR21: 19 mm |
||
|---|---|---|---|
| Display resolution | VS80-IR21: Camera probe: 160 × 120 IR Screen resolution 1024 × 600 VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600 VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600 |
||
| Color Palettes | Iron, rainbow, grayscale, below alarm, above alarm | ||
| Depth of Field | 10 mm to infinity | ||
| Diameter | VS80-KIT-1, VS80-KIT-6: 5.5 mm VS80-KIT-2: 4.5 VS80-KIT-3, VS80-KIT-7: 4.9 mm VS80-KIT-5: 10 mm VS80-KIT-8: 3.9 mm VS80-IR21: 19 mm |
||
| Display resolution | VS80-IR21: Camera probe: 160 × 120 IR Screen resolution 1024 × 600 VS80-KIT-1, VS80-KIT-2, VS80-KIT-4, VS80-KIT-5: Camera probe: 640 × 480 Screen resolution 1024 × 600 VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: Camera probe: 1280 × 720 Screen resolution 1024 × 600 |
||
| Field of View | VS80-IR21: 71° VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6, VS80-KIT-7, VS80-KIT-8: 90° VS80-KIT-4, VS80-KIT-5: 87.1° |
||
| Frame Rate | 8.7 Hz | ||
| Object Temperature Range | -10°C to 400°C (14°F to 752°F) | ||
| Spot Meter | Centre spot, hot spot, cold spot, no measurement | ||
| Video/Image Transfer | SD Card, USB, Wireless (Wi-Fi) | ||
| Battery | VS80: Li-Ion 3.6 V (internal) | ||
| Battery Life | 8 hrs | ||
| Probe Length | VS80-IR21, VS80-KIT-1, VS80-KIT-2, VS80-KIT-3, VS80-KIT-6: 1 m VS80-KIT-4, VS80-KIT-8: 2 m VS80-KIT-7: 3 m VS80-KIT-5: 25 m |
||
| Certifications | IC, CE, FCC, UKCA, RCM | ||
| Warranty | 3 years | ||
