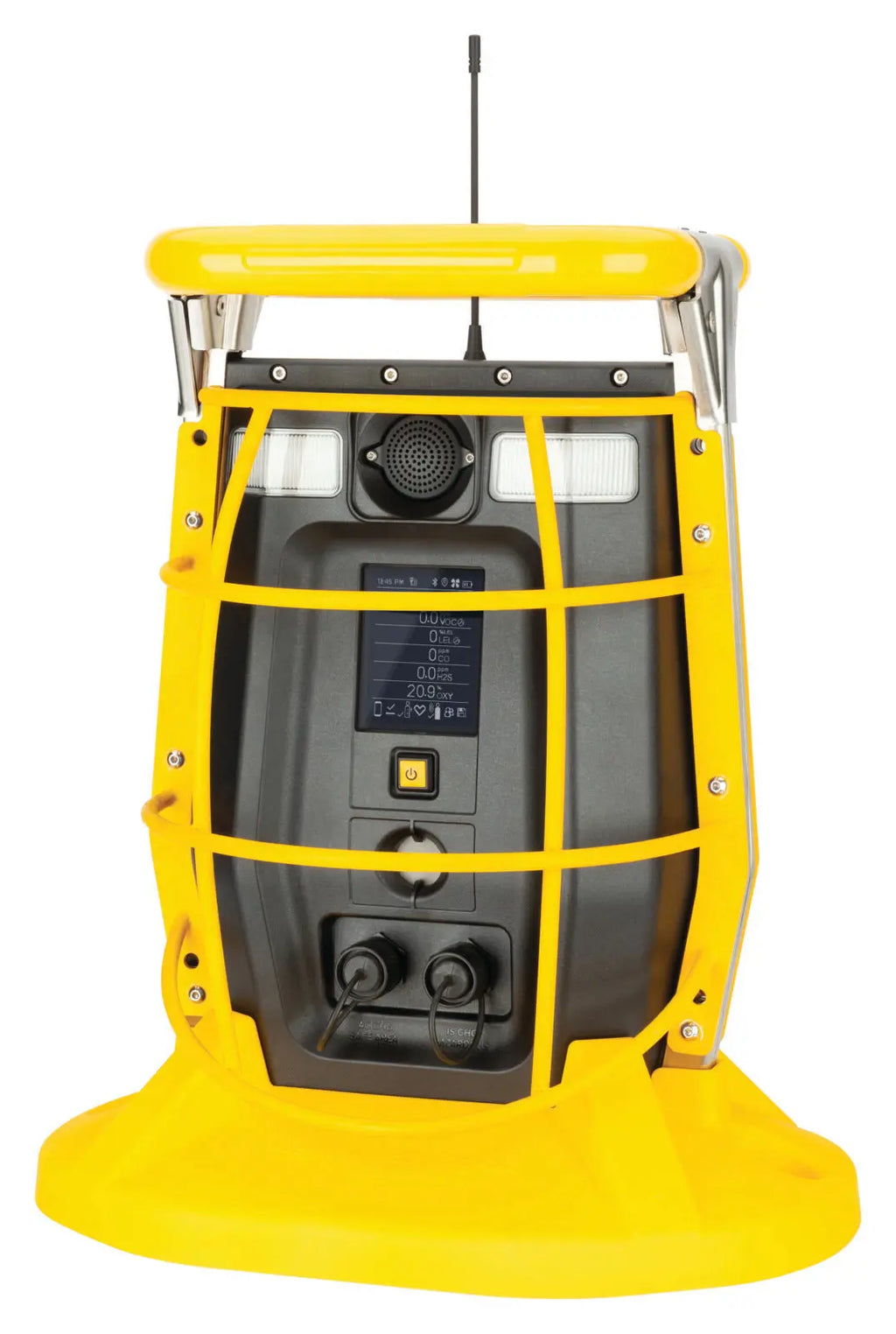

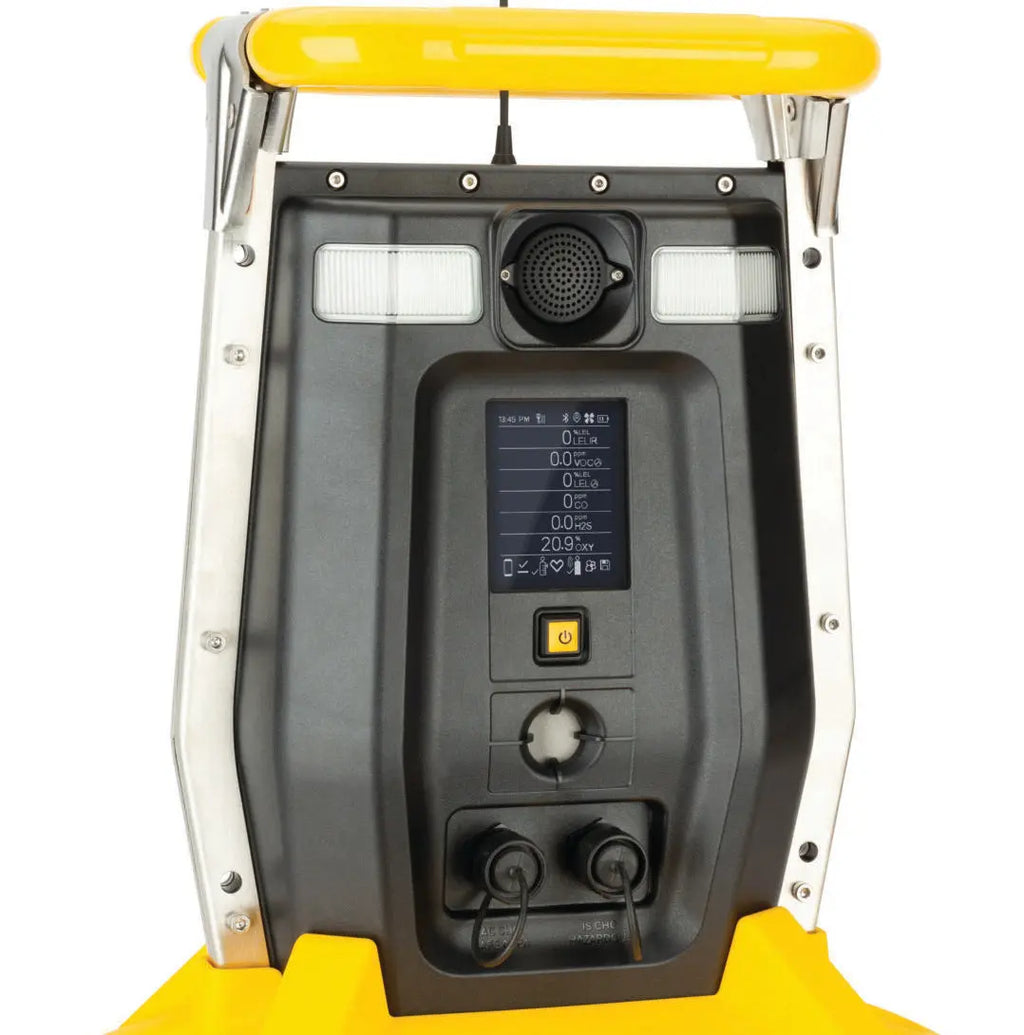

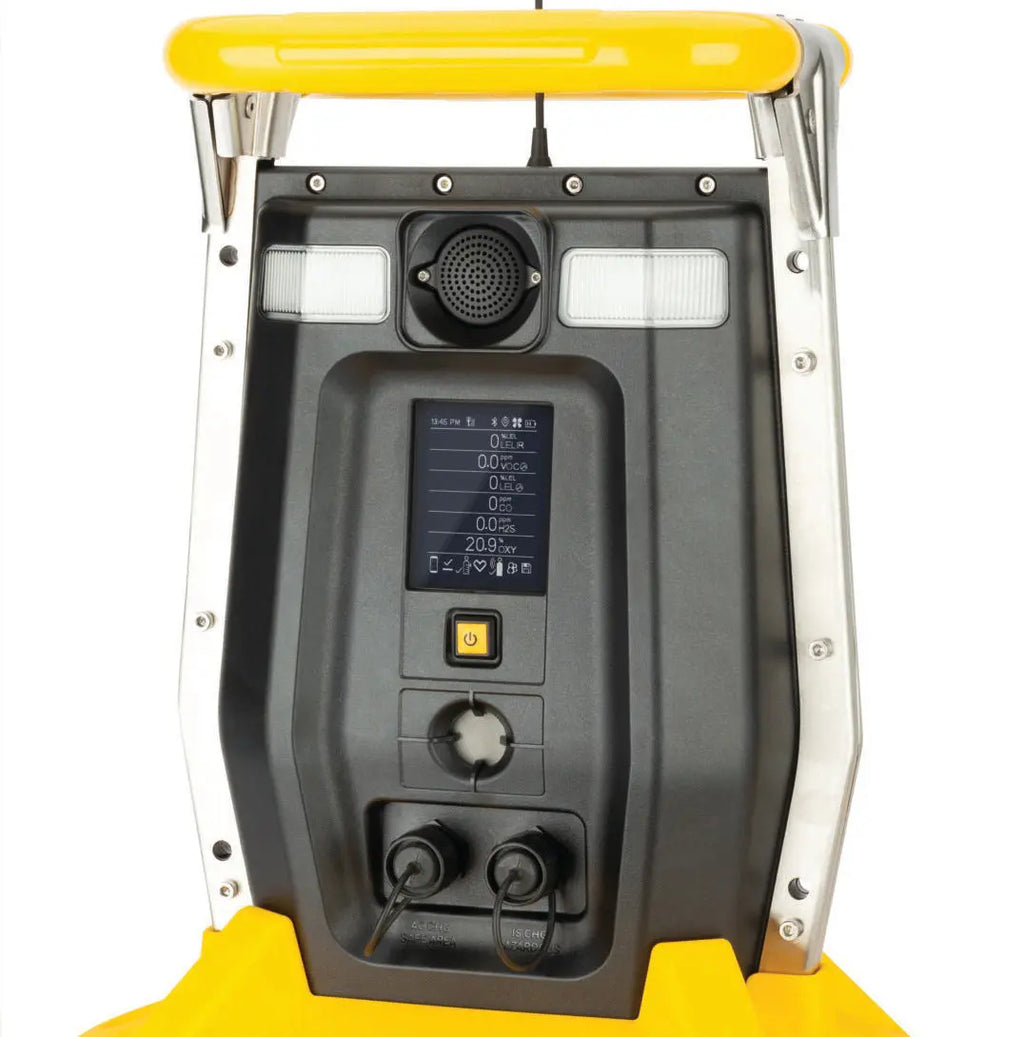

The BW™ RigRAT is a transportable, battery-powered multi-gas area monitor purpose-built for rig sites. It's built to withstand harsh field conditions and easily moves from one location to another. RigRAT can detect up to five gases simultaneously and offers reliable, real-time visibility into changing gas conditions on the rig.
- Detects up to five gases simultaneously with a wide range of sensor options.
- Rugged, transportable design built to withstand harsh rig site conditions.
- Long-lasting battery life for extended deployment without recharging.
- Bright, easy-to-read display with local audible and visual alarms.
- Simple bump testing and calibration for quick verification of accuracy.
- Compatible with BW™ Fleet Manager software for fleet-wide data management.
| Specification | Value |
|---|---|
| Detectable Gases | Combustible (LEL), Oxygen (O2), Hydrogen Sulfide (H2S), Carbon Monoxide (CO), and additional toxic gas sensors |
| Sensor Type | Electrochemical, catalytic bead, infrared (gas-dependent) |
| Alarms | Audible, visual (LED), vibrating |
| Display | Backlit LCD |
| Power Source | Rechargeable battery pack |
| Battery Life | Extended multi-day operation (rig site duty cycle) |
| Enclosure Rating | IP66/IP67 |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Housing | Rugged, impact-resistant, transportable frame |
| Data Logging | Event and datalogging capability |
| Software Compatibility | BW™ Fleet Manager |
| Certifications | ATEX, IECEx, CSA, and other regional hazardous-area approvals |
