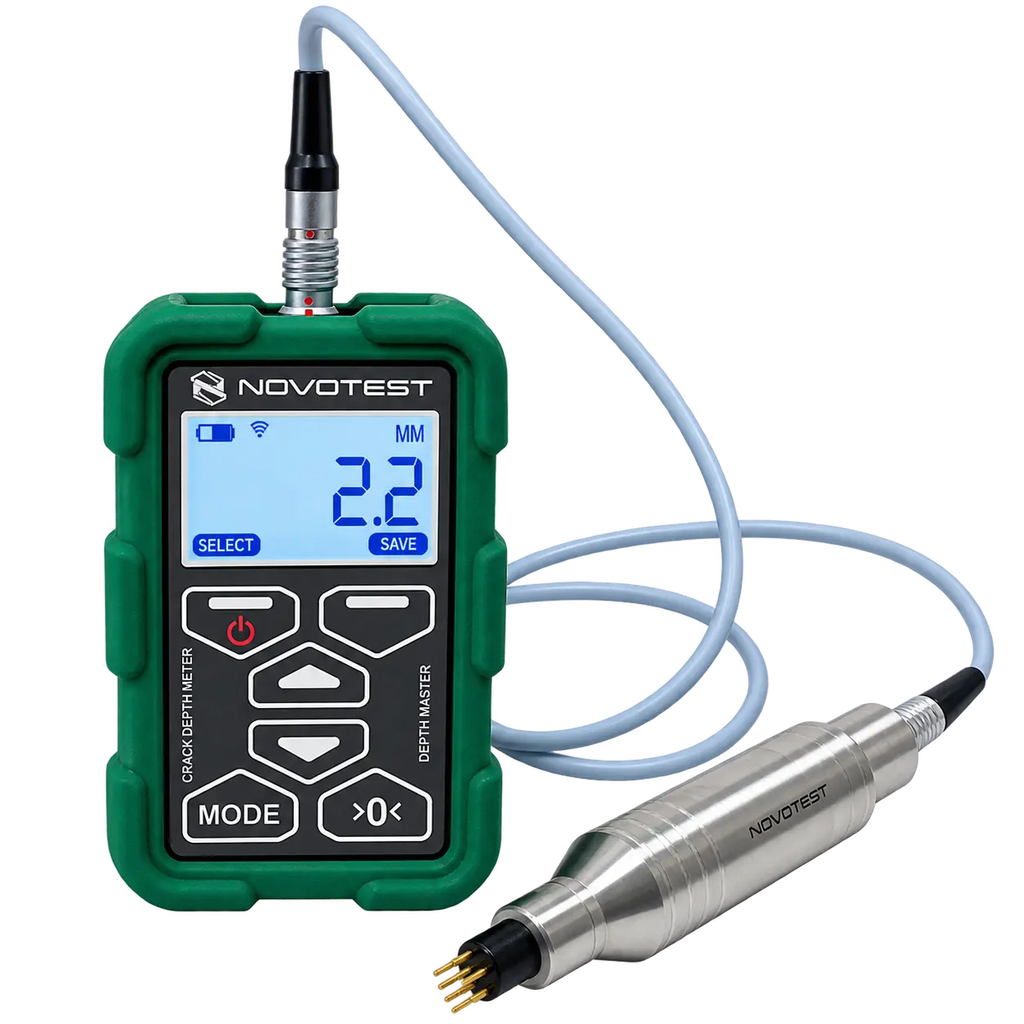

The NOVOTEST DEPTH MASTER is a specialized crack depth meter designed to accurately measure the depth of surface cracks on metals and alloys, including stainless steel, duralumin, and titanium. Utilizing the alternating current electropotential method, this device determines crack depth more quickly and accurately than traditional ultrasonic or eddy current testing methods. It is ideal for shop and field operations, offering versatile probe options, web-based data transfer, and the ability to measure on both curved surfaces and across ferromagnetic and non-ferromagnetic materials.
• Utilizes the alternating current electropotential method for rapid and highly accurate crack depth measurement
• Capable of testing both ferromagnetic and non-ferromagnetic materials
• Designed for measurements on curved surfaces
• Wide measuring range with various probe designs available
• Web interface for easy data transferring and analysis
• Rugged plastic body with a shockproof silicone case for shop and field durability
• IP54 dust and moisture protection rating
• Capable of testing both ferromagnetic and non-ferromagnetic materials
• Designed for measurements on curved surfaces
• Wide measuring range with various probe designs available
• Web interface for easy data transferring and analysis
• Rugged plastic body with a shockproof silicone case for shop and field durability
• IP54 dust and moisture protection rating
|
Parameter
|
Value
|
|---|---|
|
Measurement Crack Depth Range
|
0.5 – 30 mm
|
|
Crack Depth Estimation Range
|
30 – 100 mm
|
|
Measurement Error
|
±(0.1h + 0.2 mm)
|
|
Maximum Crack Opening
|
3.5 mm (depending on probe)
|
|
Minimum Crack Length
|
5 crack depths or minimum 3 mm
|
|
Languages
|
English, Ukrainian, Russian (others by request)
|
|
Body Type / Protection
|
Plastic with shockproof silicone case, IP54
|
|
Power Supply / Charging
|
2 × AA batteries / AA charger
|
|
Battery Life
|
20 hours
|
|
Operating Environment
|
Temperature: -20°C to 50°C, Humidity: <95% R.H. at 35°C
|
|
Dimensions (Unit with batteries)
|
122 × 76 × 37 mm
|
|
Weight (with batteries)
|
0.25 kg
|
