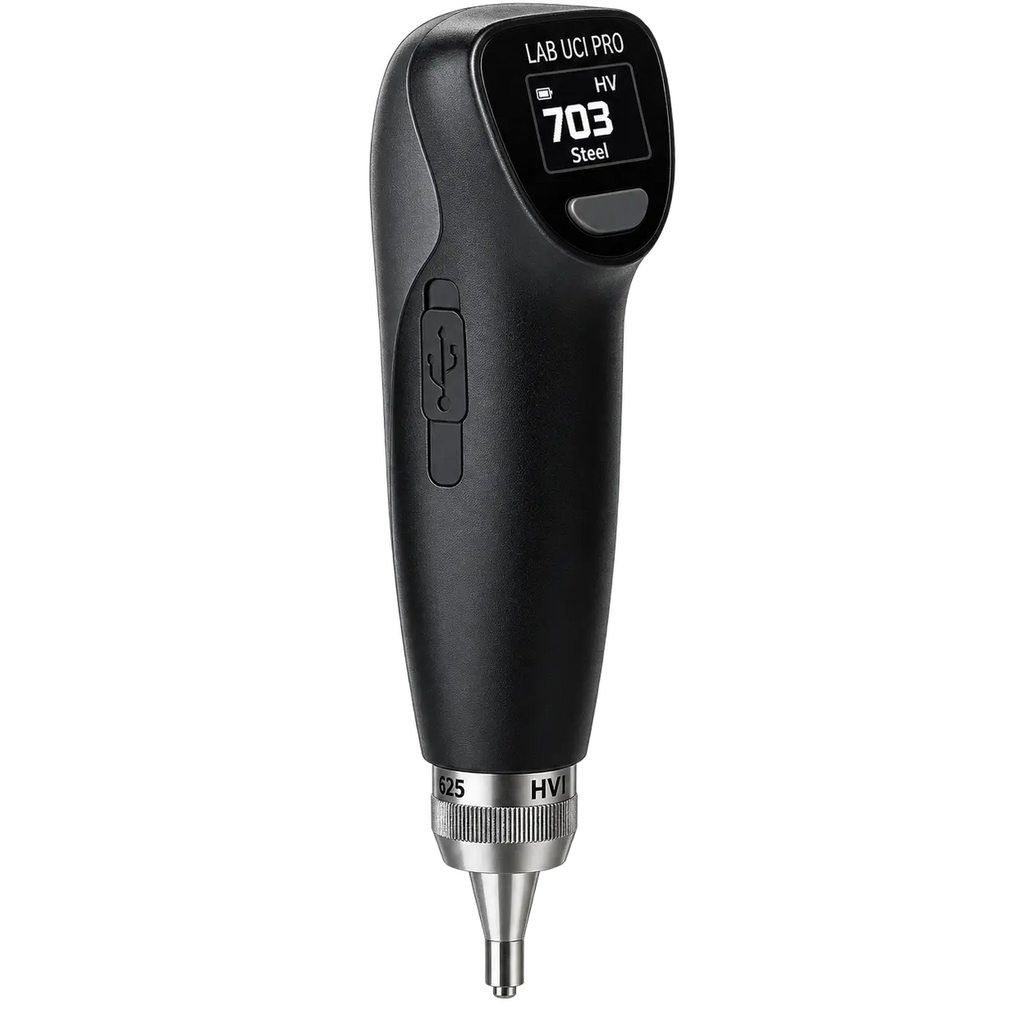

The NOVOTEST LAB UCI PRO is a portable electronic device designed for fast and highly accurate hardness measurement of metal products using the Ultrasonic Contact Impedance (UCI) method. It supports multiple hardness scales and a wide variety of materials, making it ideal for industrial, laboratory, and field applications. Featuring a compact design, built-in rechargeable battery, and modern connectivity options like USB-C and Bluetooth BLE, it ensures efficient data management and seamless integration with the NOVOTEST Lab app. The device complies with major international standards, including ASTM A1038, DIN 50159, ASTM E140, and ISO18265.
• Fast and highly accurate hardness measurement using the Ultrasonic Contact Impedance (UCI) method
• Supports multiple hardness scales: HV, HB, HRC, HRB, HRA, HK, and MPa
• Compatible with various materials: Steel, Alloy steel, Stainless steel, Cast iron, Nickel, Aluminum, Brass, and Copper
• Clear 0.66" (64x48) display showing current measurement, material, scale, measurement speed, and battery level
• Built-in lithium-ion battery (3.7V, 750mAh) providing up to 24 hours of continuous operation
• USB-C interface for charging and PC connection, plus Bluetooth BLE for wireless data transfer
• Measurement uncertainty of 4% with a wide measurement range up to 2000 HV
• Complies with international standards: ASTM A1038, DIN 50159, ASTM E140, and ISO18265
• Supports multiple hardness scales: HV, HB, HRC, HRB, HRA, HK, and MPa
• Compatible with various materials: Steel, Alloy steel, Stainless steel, Cast iron, Nickel, Aluminum, Brass, and Copper
• Clear 0.66" (64x48) display showing current measurement, material, scale, measurement speed, and battery level
• Built-in lithium-ion battery (3.7V, 750mAh) providing up to 24 hours of continuous operation
• USB-C interface for charging and PC connection, plus Bluetooth BLE for wireless data transfer
• Measurement uncertainty of 4% with a wide measurement range up to 2000 HV
• Complies with international standards: ASTM A1038, DIN 50159, ASTM E140, and ISO18265
|
Parameter
|
Value
|
|---|---|
|
Measurement Method
|
Ultrasonic Contact Impedance (UCI)
|
|
Hardness Scales
|
HV, HB, HRC, HRB, HRA, HK, MPa
|
|
Measurement Range
|
0 to 2000 HV
|
|
Measurement Uncertainty
|
4%
|
|
Test Load
|
HV1 (9.8 N) or HV5 (49 N)
|
|
Supported Materials
|
Steel, Alloy steel, Stainless steel, Cast iron, Nickel, Aluminum, Brass, Copper
|
|
Display
|
0.66" (64x48 pixels)
|
|
Interfaces
|
USB-C (charging and PC), Bluetooth BLE
|
|
Battery
|
Built-in Li-ion, 3.7V 750mAh (up to 24 hrs)
|
|
Operating Temperature
|
-20°C to +50°C
|
|
Storage Temperature
|
-25°C to +60°C
|
|
Storage Humidity
|
≤90%, non-condensing
|
|
Compliance Standards
|
ASTM A1038, DIN 50159, ASTM E140, ISO18265
|
|
Dimensions
|
153 × 40 mm
|
|
Weight
|
160 g
|
