Description

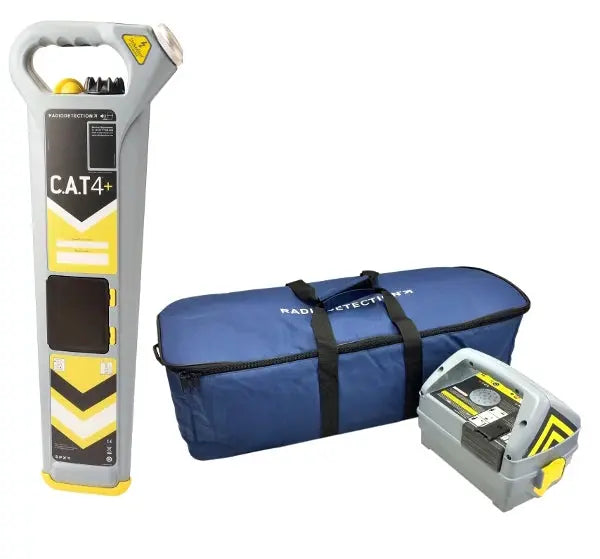

The new generation of Cable Avoidance Tools, C.A.T4™ and Genny4™ by Radiodetection enable operators to find more buried utilities, faster. This is a simple operation and now comes with optional GPS logging.
This 30 year favorite locator package easily identifies pipes & cables with and without the Genny transmitter. CAT units are known for their ability to detect even the smallest signal. Their unique 'Real' sound helps determine the type of utility. The new Avoidance Mode™ lets the operator check an intended excavation area for all the signals in one sweep (Power, Radio and Genny4 signals). The bargraph ‘tidemark’ enables the user to quickly spot and zero-in on a buried conductor.
Features
- Highly contrast display with auto-backlight
- 4 modes - Genny, Power, Radio and Avoidance mode
- Digital depth when using a Genny
- Real sound - signals can be easily distinguished from each other and from background noise
- 1 Watt of power
- Dual frequency
- Transmitter storage tray
- USB 2.0 for eCERT certification and software updates
- Cables, ground rod and instructions
-
1 Year Warranty
| Mode |
Frequency Range |
|---|---|
| Power Signals (P) | 50Hz and 60Hz and harmonics |
| Radio Signals (R) | 15kHz to 30kHz |
| Genny4 Signals (G) | Simultaneous 32.768kHz and 131.072kHz +/- 20Hz |
| Avoidance Mode (A) | P+R+G As above |
| Dynamic Range | 120dB @10Hz |
| Dynamic Overload Protection | 40dB @50Hz (automatic) |
| Locate accuracy | +/- 10% of depth |
| Depth Range | Line depth 4m, Sonde Mode 7m |
| Depth Accuracy | Line mode 5%, Sonde Mode 5% |
| Horizontal GPS Accuracy | 3m CEP (Circular Error Probable) |
| Data-logging capacity | 24 months @8hrs day, 5 days per week |
| Service indicator | Provides 30 day warning prior to elapse date |
| Power | Non latching trigger On/Off when released |
| Visual Indication | Digital display |
| Audio Output | Non latching trigger On/Off when released |
| Display | Burnt Glass Backlit LCD |
| Gain control | Manual Rotary 270 Degree |
| Mode control | Manual 4 position switch |
| StrikeAlert | Alarm that activates in Power, Genny and Avoidance modes when less than 30cm from Cable Avoidance Tool |
| Batteries | Requires 2 x D-Cell batteries (HR20 NiMH preferred) but alkaline LR20 can be used |
| Battery Life | 14 hours continuous, 0 to 50°c using Radiodetection NiMH Rechargeable batteries 4 hours continuous 0 to 50°c using Alkaline batteries |
