Description
Handy in insulation resistance measurements

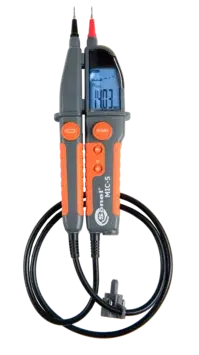

The MIC-5 is a handy insulation resistance meter that any self-respecting electrician can sling around his neck like a doctor's stethoscope in order to always have it at hand. The instrument allows for simple and quick insulation evaluation, checking continuity of connections and measuring voltage on the object.
Features
-
Insulation resistance measurement:
- selectable measurement voltage: 250 V or 500 V,
- continuous indication of measured resistance,
- very long operation time with one set of batteries: 14 h for measurement at UISO = 250 V, 11 h for UISO = 500 V,
- automatic discharge of tested object’s capacitance after measurement of insulation resistance,
- acoustic determination of 5 seconds time intervals that facilitates to take time characteristics during insulation resistance measurement,
- measurement current up to 1.4 mA,
- protection against measurement of live objects.
-
Low voltage resistance measurement in range of 0...1999 Ω:
- measurement with current of <10 mA with resolution of 0,1 Ω,
- quick acoustic signalling for circuit resistance below 10 Ω.
-
AC/DC voltage measurement in range of 0...600 V:
- automatic detection of voltage type (AC/DC).
Specifications
| AC/DC voltage | 0 V…600 V | 0 V…600 V | 1 V | ±(3% m.v. + 2 digits) |
| Insulation resistance | ||||
| Measuring voltage 250 V | 250 k?…1000 M? acc. to IEC 61557-2 | 1 k?…1000 M? | from 1 k? | from ±(3% m.v. + 8 digits) |
| Measuring voltage 500 V | 500 k?…1999 M? acc. to IEC 61557-2 | 1 k?…1999 M? | from 1 k? | from ±(3% m.v. + 8 digits) |
| Connection resistance measurement | 0,0 ?…1999 ? | 0,0 ?…1999 ? | from 0,1 ? | ±(4% m.v. + 3 digits) |
Downloads
