Description

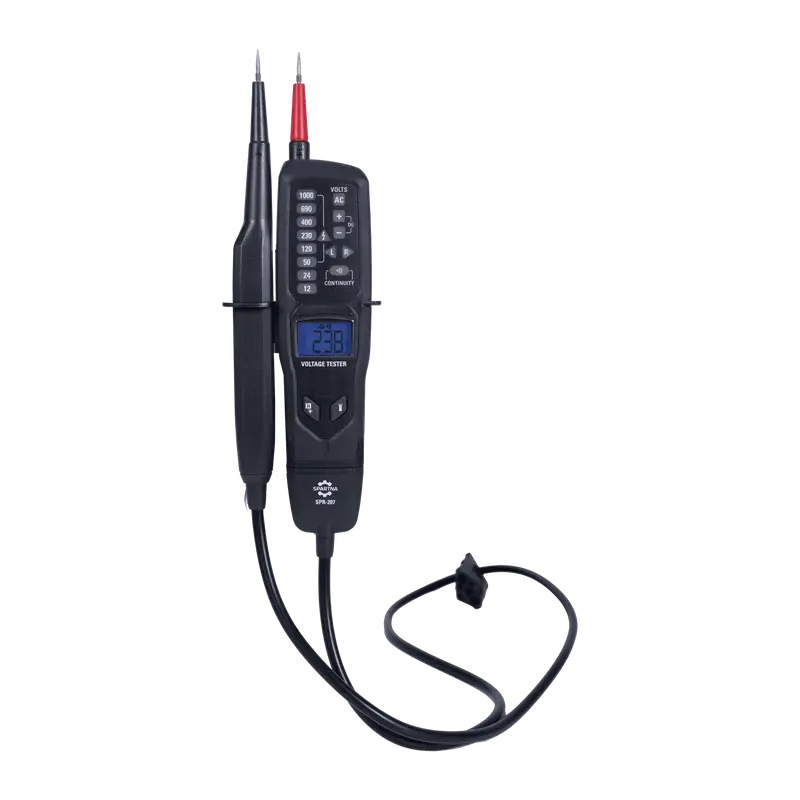

The SPR-207 is a versatile high voltage tester designed for professionals working with electrical systems. With advanced features for voltage measurement, phase testing, and continuity checks, this tester ensures accurate readings and enhances safety during inspections and troubleshooting. Rated for CAT III 1000V and CAT IV 600V environments, it provides reliable performance in demanding electrical applications with built-in safety features and convenient functionality.
Features
- Single-Pole Phase Test: Verifies phase presence in electrical systems
- Continuity Test: Checks for complete electrical paths with audible indication
- Rotary Field Indication: Identifies the direction of rotation in three-phase systems
- Polarity Indication: Displays the polarity of the voltage being measured
- Hold Function: Freezes the current reading for easy reference and documentation
- CAT III 1000V / CAT IV 600V Rated: Safe for use in high voltage environments
- LCD Backlight: Ensures visibility in low-light conditions
- Clear Audible Tone: Provides audible alerts for voltage detection and continuity
- Built-in Torch: Adds convenience for use in dark areas
- Probe Tip Protection Cap: Enhances safety and protects the probe tips when not in use
Specifications
| Specification | Details |
|---|---|
| Voltage Range | 12V to 1000V AC/DC |
| Resolution | ±12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V |
| Frequency Range | 0/40 Hz to 400 Hz |
| Auto Power On | >12V AC/DC |
| Voltage Detection | Automatic |
| Polarity Detection | Full Range |
| Internal Basic Load | Maximum 3.5 mA at 1000V |
| Operation Time | Duration Time - 30 seconds |
| Recovery Time | 240 seconds |
| Continuity Test | 0 to 400 kΩ |
| Accuracy Nominal Resistance | ±50% |
| Test Current | 100V AC to 1000V AC |
| Single-Pole Phase Test | 40 Hz to 60 Hz |
| Frequency Range (LEDs) | 100V to 1000V (phase to earth) |
