Description

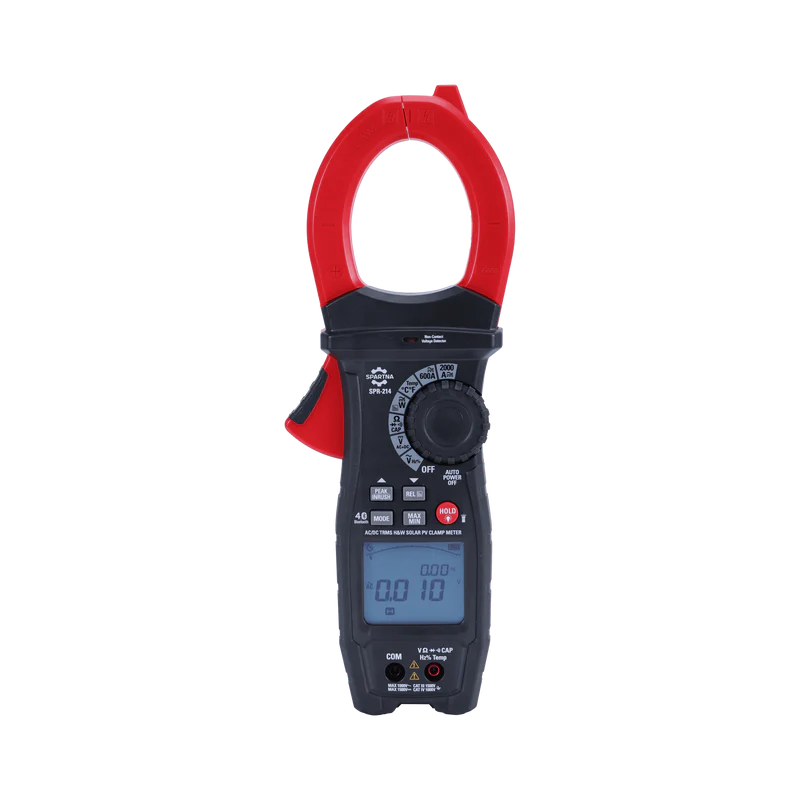

The Spartna AC/DC TRMS H&W Analysis Clamp Meter is a high-performance digital clamp meter designed for accurate electrical measurements in industrial, commercial, and residential applications. It combines True RMS measurement technology with harmonic analysis capabilities, making it ideal for analyzing complex waveforms in modern electrical systems. The device features a large jaw opening, Bluetooth connectivity, non-contact voltage detection, and multiple measurement functions including current, voltage, resistance, capacitance, temperature, harmonics, and power
Features
- True RMS AC/DC current measurement up to 2000A DC / 1500A AC
- AC/DC voltage measurement up to 1000V
- Resistance measurement up to 60MΩ
- Capacitance measurement up to 9999µF
- Frequency and duty cycle measurement
- Temperature measurement using Type K thermocouple
- Diode and continuity test
- Active Power (W) and Power Factor (PF) measurement
- Total Harmonic Distortion (THD) analysis
- Individual Harmonic Measurement (up to 25th harmonic)
- Peak and inrush current/voltage capture
- Data hold and flashlight function
- Backlight and REL mode
- Auto power-off after 15 minutes
- Overload protection on all ranges
- Bluetooth connectivity
- Safety category CAT IV 600V / CAT II 1000V
Specifications
|
|
|
|
|
|
|---|---|---|---|---|
| Current Measurement | - AC: 60.00A / 600.0A / 1500A - DC: 60.00A / 600.0A / 2000A - Accuracy: ±(2.5% to 3% + 5 digits) |
|
|
|
| Voltage Measurement | - AC/DC: 6.000V to 1000V - Accuracy: ±(1.0% to 1.5% + 3 to 5 digits) |
|
|
|
| Resistance | - Range: 600.0Ω to 60.00MΩ - Accuracy: ±(1.0% to 4.0% + 3 to 5 digits) |
|
|
|
| Capacitance | - Range: 9.999µF to 9999µF - Accuracy: ±(3.0% to 4.5% + 5 to 10 digits) |
|
|
|
| Frequency | - Voltage: 20.0Hz to 9.999kHz - Accuracy: ±(1.0% + 3 digits) |
|
|
|
| Duty Cycle | - Range: 0.1% to 99.9% - Accuracy: ±(1.0% + 3 digits) |
|
|
|
| Temperature | - Range: -20°C to 1000°C (-4°F to 1832°F) - Accuracy: ±(3.0% + 5°C or 9°F) |
|
|
|
| Harmonics | THD up to 99.9% - Individual harmonics up to 25th - Accuracy: ±(5% to 20% + 3 digits) |
|
||
| Active Power (W) | - Range: Up to 1000kW - Accuracy: ±(3% + 3 digits) |
|
|
|
| Power Factor (PF) | Range: -1.00 to +1.00 - Accuracy: ±3° ±2 digits |
|
|
|
| Display | - 3 6/7-digit (6000 counts), backlit LCD |
|
|
|
| Clamp Jaw Opening | Approx. 2.3" (60mm) |
|
|
|
| Battery | - 3 x AA 1.5V batteries |
|
||
| Battery Life | - Not specified but auto power-off after 15 min |
|
|
|
| Safety Category | - CAT II 1000V / CAT IV 600V | |||
| Operating Temperature | - 5°C to 40°C (41°F to 104°F) | |||
| Storage Temperature | - -20°C to 60°C (-4°F to 140°F) | |||
| Auto Power Off |
|
