Description

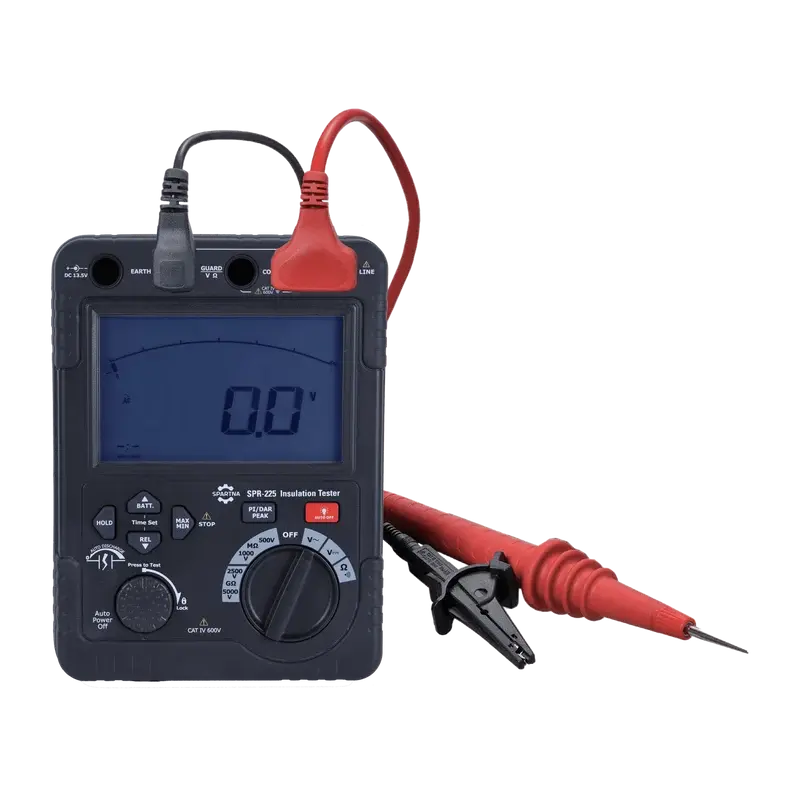

The SPARTNA Digital High Voltage Insulation Tester (SPR-225) is a state-of-the-art, microcomputer-controlled handheld instrument designed for precise and reliable measurements. It is ideal for assessing insulation resistance and AC/DC voltage in various applications.
Features:
- Wide range measurements from 500V to 5000V and up to 60G Ohm.
- Large 6000 counts digital display with bargraph and backlight.
- Polarization index measurement (PI).
- Auto ranging and Timer measurement function.
- Indication of output voltage and discharge voltage.
- Auto-discharge function and voltage output warning function.
- Auto power off and battery check.
- MAX/MIN, PEAK, Relative value and Data hold functions.

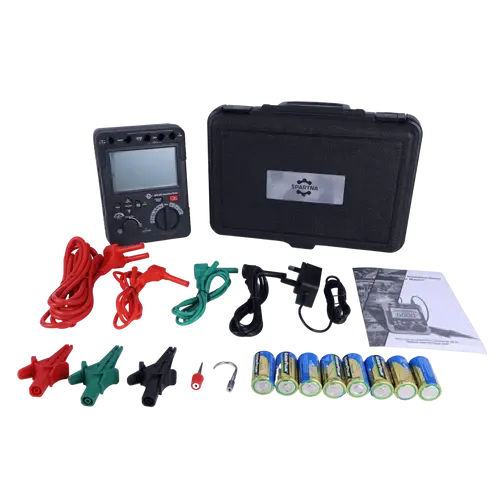

- Accessories: Test leads, instruction manual, battery, 120V/250V AC adaptor and carrying case.
Specifications:
| Specification | Value |
|---|---|
| Test Voltage | 500V/1000V/2500V/5000V |
| Insulation Resistance | 0 to 6MΩ, 0 to 60MΩ, 0 to 600MΩ, 0 to 6GΩ, 0 to 60GΩ |
| Accuracy | ±5%rdg±3dgt; ±20% (>6GΩ or more) |
| AC/DC Voltage | 0 to 600V |
| Accuracy | ±1% of reading |
| Resistance | 0 to 600Ω |
| Accuracy | ±1.5% of reading |
| Continuity | Buzzer sounds at 50Ω |
| Display | 6000 Counts |
| Withstand Voltage | 5320VAC for 5 seconds |
| Safety Standard | IEC 61010-1, CAT IV 600V |
| Power Supply | DC12V: R14 x 8 batteries |
| Dimensions | 198 (L) x 148 (W) x 86 (D) mm |
| Weight | Approx. 1438g |
