Description

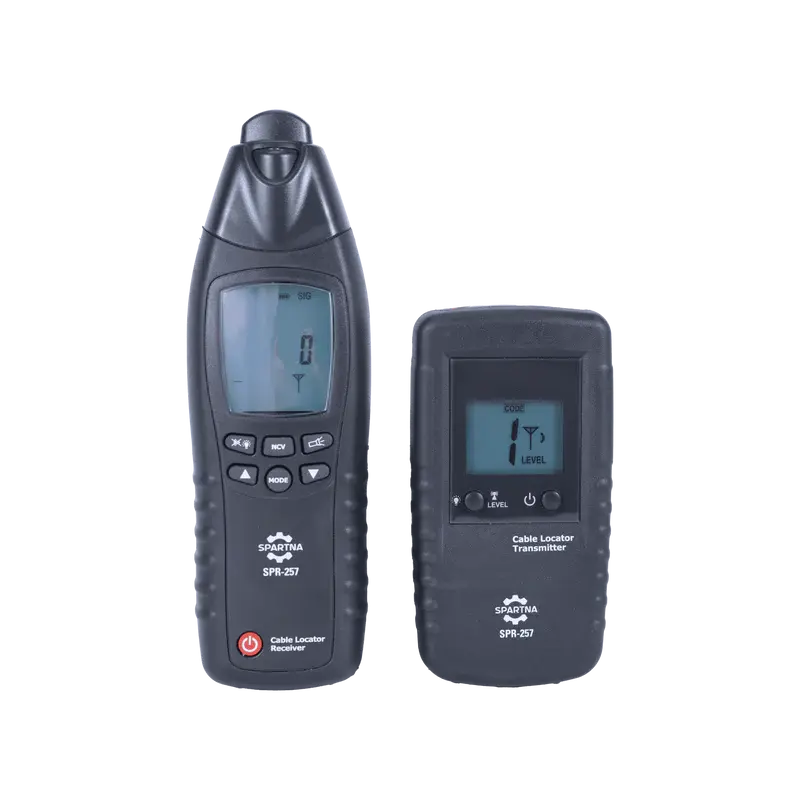

The SPARTNA SPR-257 is a versatile cable locator designed for detecting both live and dead cables without the need for additional instruments. It is suitable for a variety of applications, making it an essential tool for technicians.
Features
- Detects voltage measurements ranging from 12V to 400V AC/DC
- Capable of tracing cable locations up to 2.5 meters deep (for wall or underground cables)
- Main voltage detection up to 0.4 meters
- Operates effectively within a frequency range of 0 to 60 Hz
- Includes accessories for easy use and portability: Cable Locator, User Manual, Test Leads, Crocodile Clips, 2×9V Batteries, Carrying Case
Specifications
| Specification | Transmitter | Receiver |
|---|---|---|
| Voltage Measurement Range | 12V, 50V, 120V, 230V, 400V | Up to 400V AC/DC |
| Frequency Range | 0...60 Hz | 0...60 Hz |
| Output Signal | 125 kHz | 125 kHz |
| Tracing Depth | 0...2.5 m (wall/underground cables) | 0...2.5 m (wall/underground cables) |
| Main Voltage Detection | 0...0.4 m | 0...0.4 m |
| Operating Temperature | 0 to 40 °C | 0 to 40 °C |
| Storage Temperature | -20 °C to 60 °C | -20 °C to 60 °C |
| Humidity (Without Condensation) | Max. 80% relative | Max. 80% relative |
| Operating Altitude | Up to 2000 m | Up to 2000 m |
| Electrical Safety | CAT III 300V | CAT III 300V |
