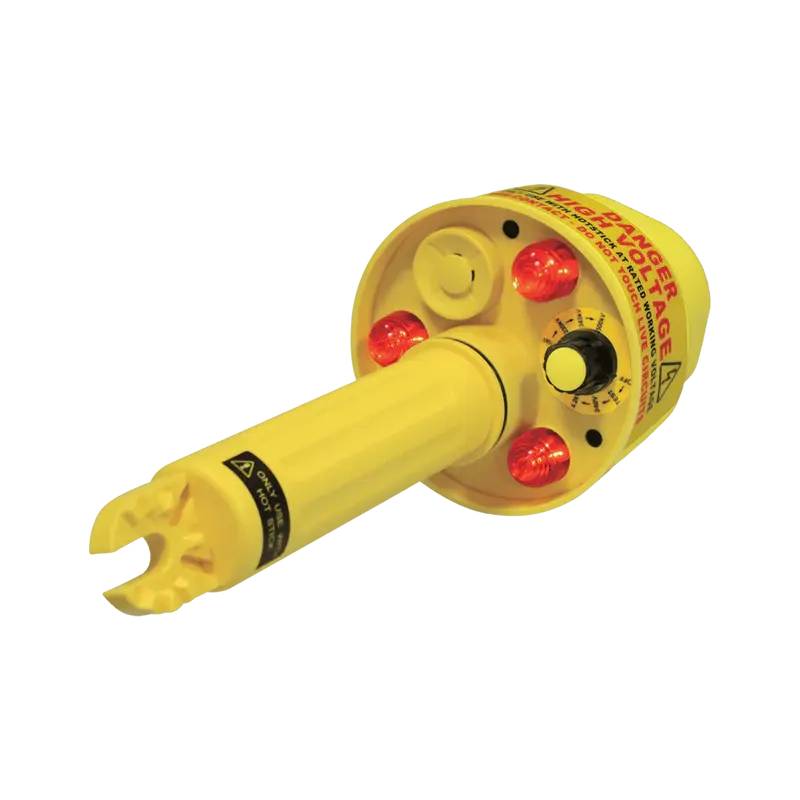

The SPR-302 is a non-contact high voltage detector with a waterproof design, specifically engineered for checking the presence of AC high and low voltages. With eight voltage settings ranging from 240V to 275kV, it offers versatility for various applications in electrical maintenance and power distribution. The device features 360° LED indicators, sound indication, and a self-test function, ensuring safe and efficient voltage detection in demanding environments. Its IP66 waterproof rating and compatibility with most hot sticks make it ideal for outdoor and industrial use.
- Non-Contact Detection: Safe voltage detection without physical contact with conductors
- Eight Voltage Settings: 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV for versatile applications
- 360° LED Indicators: Visible from all angles for clear voltage presence indication
- High-Bright LED Visual Cues: Enhanced visibility in various lighting conditions
- Sound Indication: Audible alerts for voltage detection confirmation
- Self-Test Function: Ensures device is functioning properly before use
- Lightweight and Robust Design: Durable construction for field use
- Waterproof (IP66): Protected against dust and powerful water jets
- Compatible with Most Hot Sticks: Can be mounted on standard hot sticks for extended reach

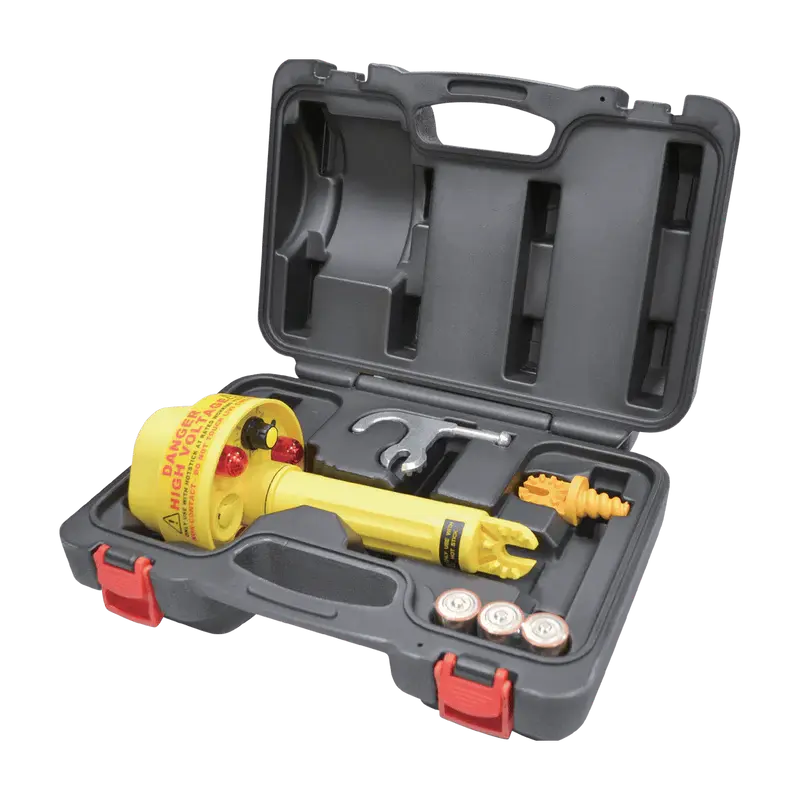

- Complete Accessory Kit: Includes instruction manual, disconnect hook, fuse extractor head, carry case, and batteries
| Specification | Details |
|---|---|
| Voltage Range | 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV |
| Protection Class | IP66 |
| Operating Temperature | -10ºC to 50ºC |
| Storage Temperature | -20ºC to 60ºC |
| Humidity | 85% R.H. @ 40ºC |
| Dimensions | 265 mm (H) x 117 mm (W) |
| Weight | Approx. 590g (including battery) |
| Power Source | 1.5V "C" × 3 Alkaline batteries |
| Included Accessories | Instruction manual, disconnect hook, fuse extractor head, carry case, batteries |
| Made In | Taiwan |
