Description

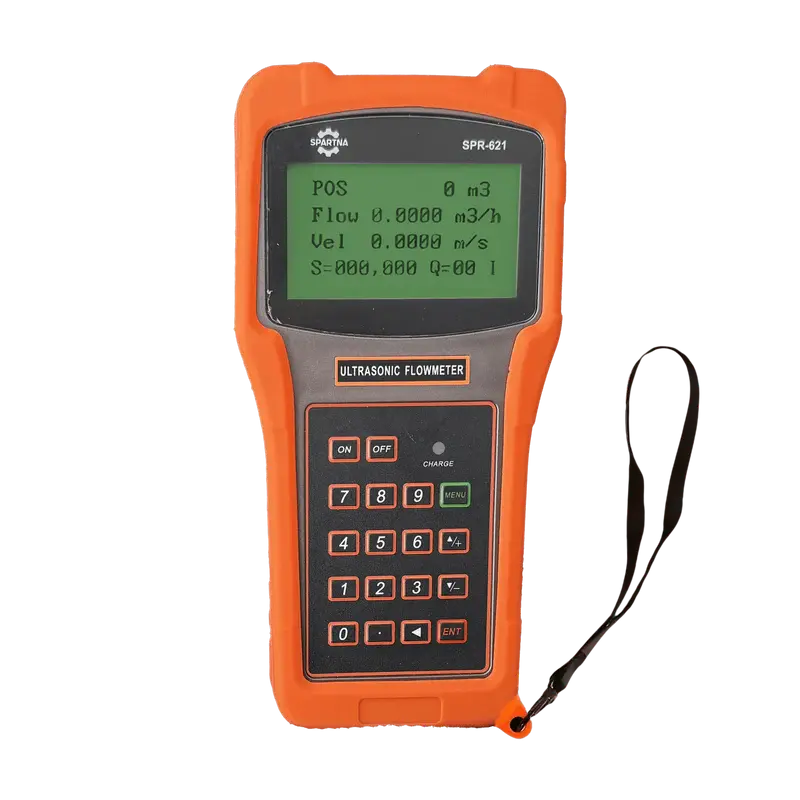

The SPR-621 is a portable, non-contact ultrasonic flowmeter designed for measuring the flow rate and velocity of liquids in pipes. It uses advanced ultrasonic technology to provide accurate measurements without the need for pipe cutting or system shutdown. The device features a built-in data logger, rechargeable battery, and supports multiple installation methods for versatility across various applications.
Features
- Non-Contact Measurement: Measures flow without interrupting the liquid system
- Multiple Installation Methods: Supports V-method, Z-method, W-method, and N-method installations
- Built-In Data Logger: Stores up to 2000 lines of measurement data with time stamps
- Rechargeable Battery: Long-lasting internal battery for extended field use
- Wide Range of Liquid Compatibility: Works with standard and non-standard liquids (with sound speed input)
- User-Friendly Interface: Large LCD display with menu navigation and real-time diagnostics
- Communication Capabilities: RS-232 interface for data transfer and remote monitoring
- Automatic Signal Optimization: Displays signal strength and quality indicators for optimal transducer placement
- Time-Based Totalizers: Tracks positive, negative, and net flow totals with date/time stamping
- Password Protection: Prevents unauthorized changes to configuration settings
Specifications
| Specification | Details |
|---|---|
| Measurement Principle | Transit-time ultrasonic method |
| Flow Velocity Range | ±0.01 to ±32 m/s (±0.04 to ±105 ft/s) |
| Accuracy | ±1% of reading (for standard liquids and proper installation) |
| Pipe Diameter Range | 20 mm to 6000 mm (standard), with optional large-diameter support |
| Liquid Types Supported | Water, seawater, oil, chemicals, waste water, and other non-gas liquids |
| Installation Methods | V-method, Z-method, W-method, N-method |
| Signal Strength Indicator | Yes (S-value) |
| Signal Quality Indicator | Yes (Q-value, 60–99 for best accuracy) |
| Data Logger Capacity | 24 KB memory (~2000 lines of data) |
| Data Output Options | Built-in logger buffer or RS-232 serial interface |
| Display | Large-screen LCD with backlight |
| Menu Navigation Keys | Dedicated keypad with ENT, MENU, UP/DOWN, LEFT/RIGHT functions |
| Built-In Rechargeable Battery | Yes (operates up to several hours on full charge) |
| Battery Voltage Monitoring | Yes – displays estimated working time and low battery warning |
| Communication Interface | RS-232 serial port |
| Supported Units | Over 30 flow units (m³, liter, gallon, barrel, etc.) per second/hour/day |
| Operating Temperature | 0°C to 50°C (standard); optional extended range |
| Storage Temperature | -10°C to 60°C |
| Dimensions | Compact handheld design (~200 x 100 x 50 mm approx.) |
| Weight | ~400 g (without transducers) |
| Transducer Type | Clamp-on piezoelectric transducers (standard M1/M2 models included) |
| Frequency Output (Optional) | Configurable output based on flow rate (OCT output shared with RS-232) |
