Description

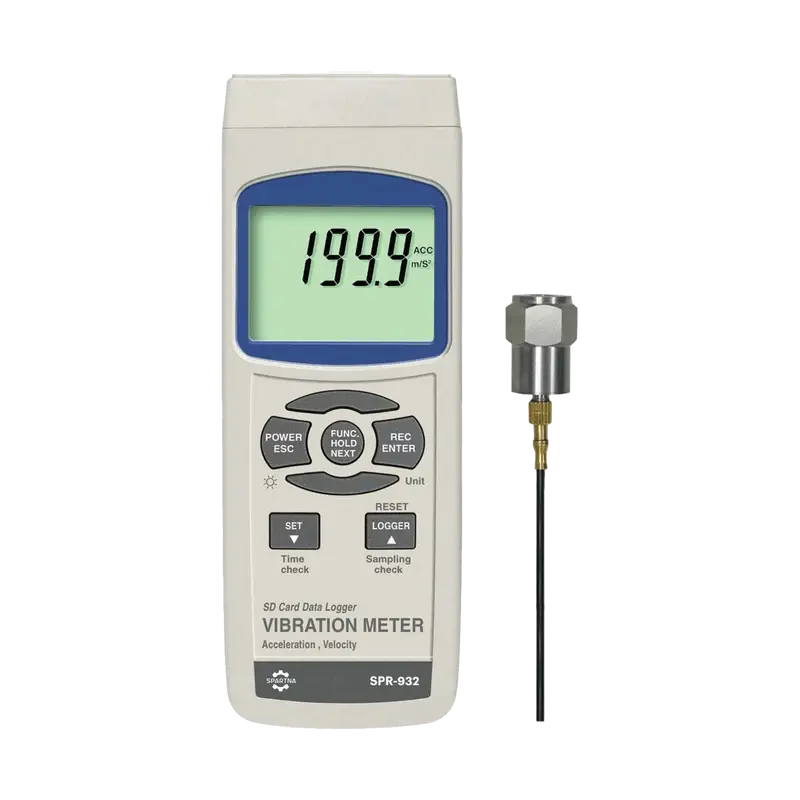

The SPARTNA SPR-932 is a high-performance vibration meter designed for industrial vibration monitoring. It accurately measures acceleration, velocity, and peak values with high precision and includes an SD card datalogger for real-time data recording. Featuring a built-in clock and calendar, it supports both manual and auto datalogging modes with time-stamped records. The device is ideal for predictive maintenance, machinery diagnostics, and field testing, and offers RS232/USB connectivity for easy data transfer to a PC.
Features:
- Measures Acceleration (m/s², g, ft/s²) and Velocity (mm/s, cm/s, inch/s).
- Supports RMS, Peak, and Max Hold measurement modes.
- Real-time SD card datalogger (1–16 GB capacity) with time-stamped records.
- Manual logging mode: Assign location tags (1–99) for multi-point measurements.
- Built-in clock and calendar for accurate data tracking.
- LCD display with green backlight for clear visibility in low light.
- Auto power-off setting and beep sound control.
- Compatible with RS232/USB for PC connectivity.
- Includes reset function, zero adjustment, and max hold reset.
- Powered by 6 AA batteries or DC 9V adapter for extended use.
Specifications:
| Specification | Value |
|---|---|
| Measurement Types | Acceleration, Velocity |
| Units Supported | Acceleration: m/s², g, ft/s² / Velocity: mm/s, cm/s, inch/s |
| Measurement Modes | RMS, Peak, Max Hold |
| Frequency Range | 10 Hz – 1 kHz |
| Accuracy | ±(5% reading + 5 digits) at 160 Hz, 80 Hz, 23±5°C |
| Datalogging Function | Real-time SD card logging (sampling rate: 1–3600 sec) |
| Manual Logging Mode | Supports location tagging (1–99) |
| SD Card Support | 1 GB – 16 GB (FAT16/FAT32 formatted) |
| Memory File Format | Excel-compatible .XLS files |
| Data Output Interface | RS232/USB (cable optional) |
| Display | LCD with green backlight |
| Power Supply | 6 x AA batteries (1.5V) or DC 9V adapter |
| Battery Life | Approx. 15 mA (no SD logging/backlight off), 36 mA (logging active) |
| Dimensions | 203 x 76 x 38 mm |
| Weight | Main unit: 515g / Vibration probe: 99g |
| Operating Temperature | 0°C to 50°C |
| Humidity Tolerance | <85% RH |

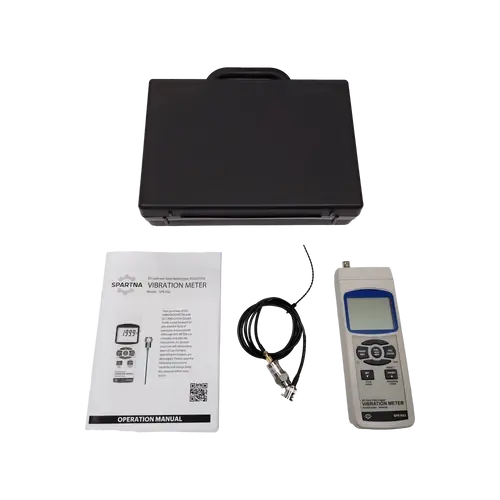

| Included Accessories | Instruction manual, carrying case, vibration sensor, magnetic base, cable |
| Optional Accessories | SD card, USB cable, RS232 cable, data acquisition software |
