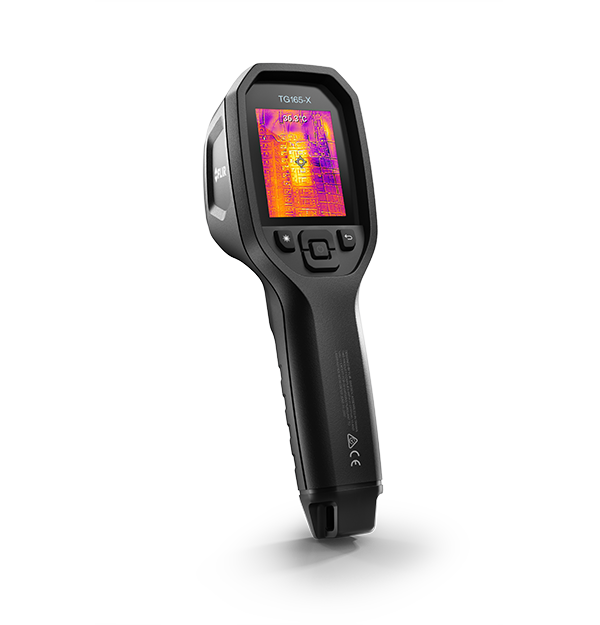

The FLIR TG165-X is a handheld thermal imaging camera that combines non-contact temperature measurement with FLIR’s patented MSX® (Multi-Spectral Dynamic Imaging) technology to overlay visible-light details onto thermal images. Designed for electrical, mechanical, and HVAC/R diagnostics, it quickly identifies hot spots, cold zones, and hidden faults—replacing slow single-spot IR thermometers. Features include a bullseye laser for precise targeting, 2.4" display, 50,000-image internal storage, IP54-rated rugged housing, drop-tested durability (2 m), and a rechargeable Li-ion battery.
• Thermal imaging with MSX® for enhanced detail (adds visual edges to thermal images)
• Bullseye laser for accurate measurement targeting
• Measures -25°C to 300°C (-13°F to 572°F)
• Accuracy up to ±1.5°C (±3°F) in mid-range
• Fixed focus, 80×60 IR resolution, 51°×66° FOV
• 2.4" color display with multiple palettes (Iron, Rainbow, Whitehot, etc.)
• Stores up to 50,000 JPEG images with embedded temperature data
• Built-in LED worklight for dark areas
• IP54 enclosure, 2-meter drop tested
• Includes rechargeable Li-ion battery and FLIR 2-10 warranty
|
|
|
|---|---|
| Temperature Range | -25°C to 300°C (-13°F to 572°F) |
| Accuracy | ±1.5°C (±3°F) from 50–100°C; varies by range |
| IR Resolution | 80 × 60 pixels |
| Field of View (FOV) | 51° × 66° |
| Display | 2.4" color LCD (320×240) |
| Image Storage | 4 GB internal (50,000 images) |
| Battery Life | Up to 5 hours |
| Laser | Class 1 bullseye pointer |
| Worklight | 100-lumen LED |
| Dimensions | 8.3 × 2.5 × 3.2 in (210 × 64 × 81 mm) |
| Weight | 13.9 oz (394 g) |
| Protection | IP54, drop-tested to 2 m |
