Description

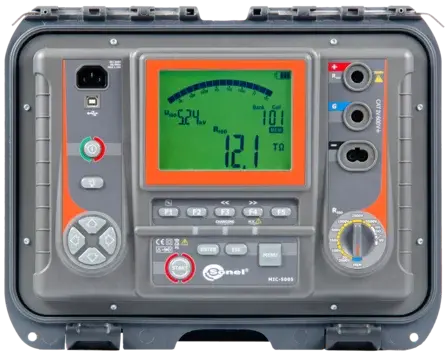

constitute a reliable tool for measuring insulation resistance up to 15 TΩ. The maximum measurement current is 1.2 mA or 3mA, which guarantees charging a high capacity object in a short time. Each measurement, whether the programmed time expires or is manually interrupted, ends with the meter discharging the object. The device has unique algorithms that allow it to recognise the nature of the voltage present on the object, thanks to which the instrument can determine whether the voltage is the mains voltage - in which case the measurement will not be carried out - or whether it is the voltage generated by an electromagnetic field - in which case the measurement will be carried out. This makes it possible to carry out measurements in the presence of very strong electromagnetic fields where this was previously not feasible.
Features
- Measuring voltage in the range of 50…5000 V, 50…1000 V in steps of 10 V, 1…5 kV in steps of 25 V
- Continuous indication of measured insulation resistance and leakage current
- Automatic discharge of measured object capacitance voltage after the end of insulation resistance measurement
- Acoustic signalling of 5-second intervals to facilitate capturing time characteristics
- Adjustable measuring time - max. 99'59'’
- Metered T1, T2 and T3 test times for measuring one or two absorption coefficients from the range of 1…600 s
- Measurement of coefficients: polarisation (PI), absorption Ab1, Ab2, dielectric absorption ratio (DAR)
- Indication of actual test voltage during measurement
- Test current: 1.2 mA or 3 mA
- Two- and three-lead method of insulation resistance measurement
- Measurements with test leads up to 20 m
- Protection against measuring live objects
- Measurement of capacitance during the measurement of RISO
- Step voltage insulation resistance measurement (SV)
- Dielectric Discharge calculation (DD)
- Digital filters for measurements with strong interferences
Specifications
| Display Range | 0…999 kΩ | ||
|---|---|---|---|
| Resolution | 1 kΩ | ||
| Accuracy | ±(3% m.v. + 10 digits) | ||
| Display Range | 1.00…9.99 MΩ | ||
| Resolution | 0.01 MΩ | ||
| Accuracy | ±(3% m.v. + 10 digits) | ||
| Display Range | 10.0…99.9 MΩ | ||
| Resolution | 1 kΩ | ||
| Accuracy | ±(3% m.v. + 10 digits) |
Downloads
