Description

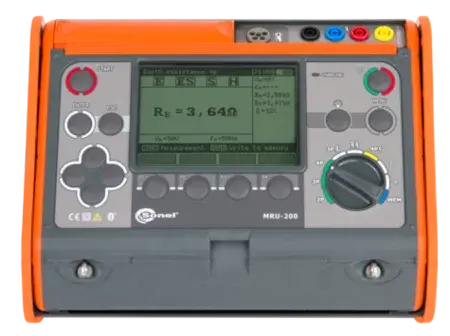

The Sonel MRU-200 earth resistance and soil resistivity meter for earth resistance and soil resistivity measurements with the use of various methods.
The feature that definitely distinguishes this model from other meters of this kind is the use of all known methods of earth resistance measurement. The measurement can be carried out using the technical 3-pole and 4-wire method, also with additional clamps (multiple earthing), as well as the two-clamp method and the impulse method (earthing impedance measurement).
Features
- Measurement of resistance of auxiliary electrodes RS and RH
- Measurement of interference voltage
- Measurement of interference frequency
- Measurement in the presence of interference voltage generated by power networks with frequency of 16 2/3 Hz, 50 Hz, 60 Hz, 400 Hz
- Selection of maximum measuring voltage (25 V and 50 V)
- Automatic calculation of soil resistivity in ohm-meters (Ωm) and ohm-feet (Ωft)
- Memory of 990 measurement results (10 banks of 99 cells each)
- Calibration of clamp used
- Real time clock (RTC)
- Data transmission to the computer and mobile devices
- Battery indication
Specifications
| Measurement Functions | Interference voltage | ||
|---|---|---|---|
| Measurement Range | 0 V…100 V | ||
| Display Range | 0 V…100 V | ||
| Resolution | 1 V | ||
| Accuracy | ±(2% m.v. + 3 digits) | ||
| Measurement functions | Resistance of earth connection and equipotential bonding | ||
| Measurement Range | 0.045 Ω…19.99 kΩ acc. to EN 61557-4 | ||
| Display Range | 0.00 Ω…19.9 kΩ | ||
| Resolution | from 0.001 Ω | ||
| Accuracy | from ±(2% m.v. + 2 digits) | ||
